Transceivers

1. Multi-Mode SFP Transceivers

3

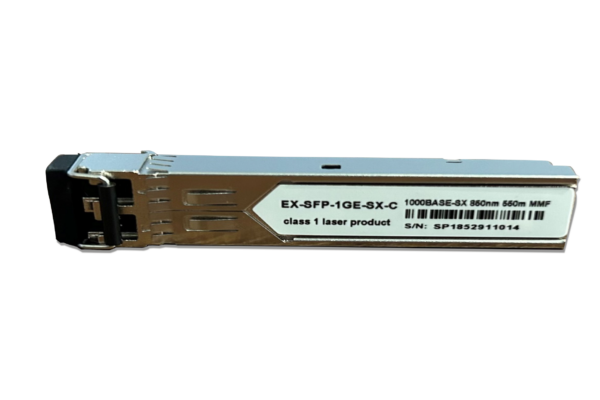

1.25Gbps SFP Optical Transceiver, 550m Reach

    • Wavelength: 850nm
    • Data Rate: 1.25Gbps
    • Reach: 550m (50/125µm MMF) / 300m (62.5/125µm MMF)
    • Connector: LC Duplex
    • Temperature Range: Standard (0°C to +70°C), Extended (-20°C to +85°C)
    • Applications: Gigabit Ethernet, Fiber Channel, Switch-to-Switch interfaces
    • Compliance: IEEE802.3Z, RoHS, SFP MSA
Transceivers-2

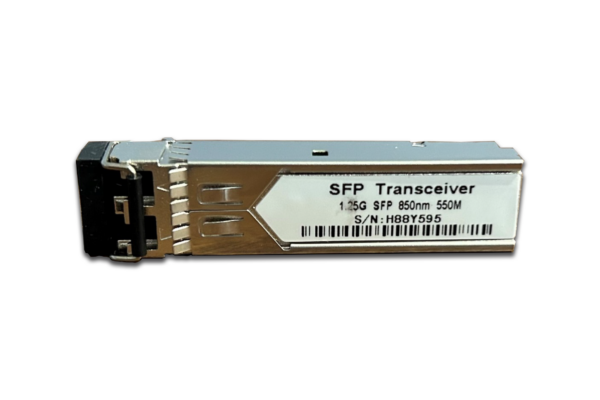

1.2. 1000BASE-SX Multi-Mode SFP (FTP-P851G-S5)

    • Wavelength: 850nm
    • Data Rate: 1.25Gbps
    • Reach: 550m
    • Connector: Duplex LC
    • Operating Temperature: 0°C to +70°C
    • Compliance: IEEE802.3Z, RoHS, SFP MSA

2. Single-Mode SFP Transceivers

Transceivers--4

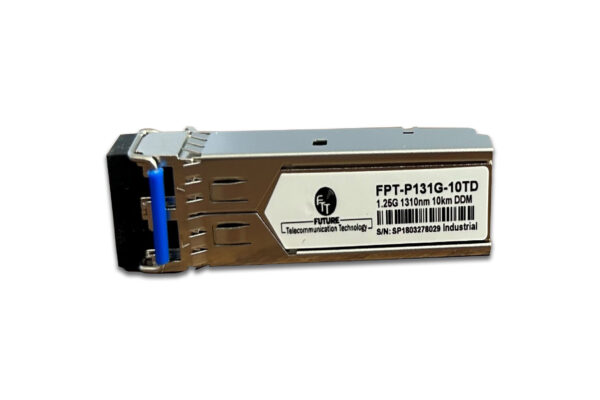

2.1. 1.25Gbps SFP Optical Transceiver, 10km Reach (FTT-P131G-10)

    • Wavelength: 1310nm
    • Data Rate: 1.25Gbps
    • Reach: 10km
    • Connector: Duplex LC
    • Operating Temperature: Standard (0°C to +70°C), Extended (-20°C to +85°C), Industrial (-40°C to +85°C)
    • Compliance: SONET OC-24-LR-1, IEEE802.3Z, RoHS
Transceivers-5

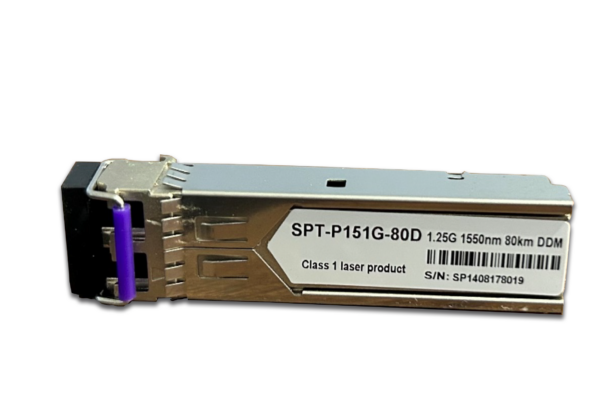

Cisco Compatible 1.25Gbps SFP (GLC LH SM)

    • Wavelength: 1550nm
    • Data Rate: 1.25Gbps
    • Reach: 80km
    • Connector: Duplex LC
    • Operating Temperature: 0°C to +70°C
    • Compliance: IEEE802.3Z, SFP MSA
Transceivers-6

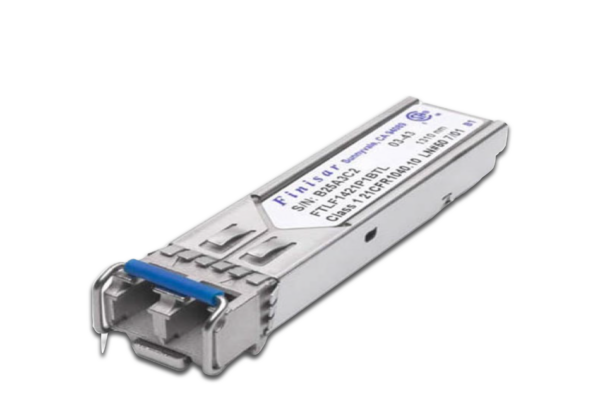

SFP Optical Transceiver 2.67Gbps, 100km

    • Wavelength: 1550nm
    • Data Rate: 2.67Gbps
    • Reach: 100km
    • Connector: LC Duplex
    • Compliance: SONET, IEEE standards

3.Other Fiber Optic Transceivers

Transceivers-7

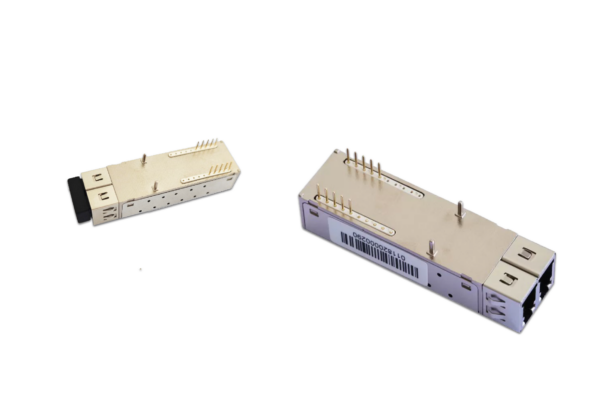

SFF Optical Transceiver

    • Form Factor: Small Form Factor 2×5 Pin
    • Connector: Duplex LC
    • Power Supply: +3.3V
    • Temperature Range: -40°C to +85°C
    • Compliance: IEC60825-1 (Eye Safety), RoHS
Transceivers1-

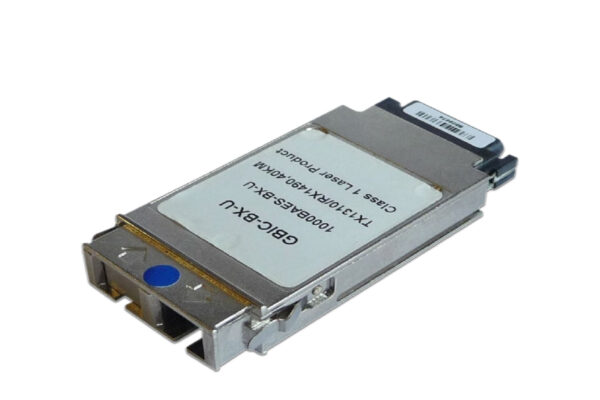

GBIC Optical Transceiver

    • Form Factor: GBIC (Gigabit Interface Converter)
    • Connector: Duplex SC
    • Data Rate: 1.25Gbps
    • Power Supply: +3.3V or +5V
    • Compliance: IEEE-802.3, Fiber Channel Standards
