CAT5e Networking Cables
The CAT5e (Category 5 enhanced) is the industry-standard copper cabling solution for reliable Ethernet connectivity. It is an improved version of the legacy CAT5 cable, specifically engineered to support Gigabit speeds and reduce “crosstalk” (interference between wire pairs). FTT’s CAT5e cables provide a cost-effective and dependable solution for local area networks (LAN) and small-to-medium enterprise infrastructures
Key Features:
- Supports Data Rates up to 1Gbps (1000Mbps).
- Bandwidth up to 100 MHz.
- Reduced Crosstalk (NEXT & FEXT) for improved performance.
- Available in UTP and Shielded Versions (FTP/STP).
- RJ45 Standard Compatibility.
- Supports Power over Ethernet (PoE).
- Flexible and Easy Installation.
Applications:
- Local Area Networks (LAN).
- Office and Home Networking.
- IP Telephony Systems.
- CCTV and Security Systems.
- Structured Cabling Systems.
FTT Cat5e Networking cables portfolio including:
- UTP Cat5e Networking cable.
- SSTP Cat5e Networking cable.
- SFTP Cat5e Networking cable.

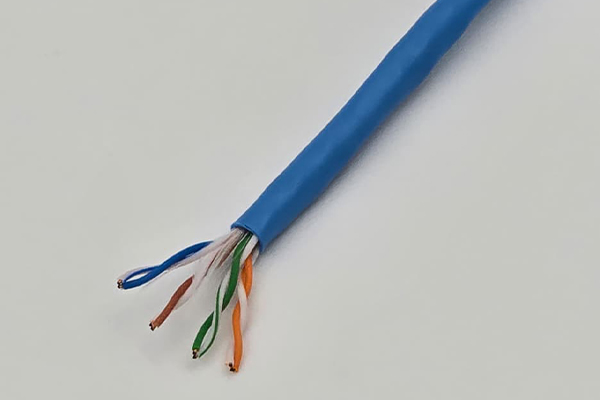

UTP Cat5e Networking cable:
The FTT’s UTP Cat5e (Unshielded Twisted Pair Category 5e) Networking Cable is a widely used copper cable designed for reliable and cost-effective data transmission in Ethernet networks.
It features four unshielded twisted pairs that help reduce electromagnetic interference and crosstalk, ensuring stable performance for Gigabit Ethernet (1Gbps) applications.
This cable is ideal for structured cabling systems in residential, commercial, and office environments.
Key Features:
- Supports Data Rates up to 1Gbps (1000Base-T)
- Bandwidth up to 100 MHz
- Unshielded Twisted Pair Design (UTP)
- Ultra smooth jacket makes this cable easy to pull in tight spaces.
- Lightweight and Flexible Structure
- Cost-Effective Networking Solution
- RJ45 Standard Compatibility
- Supports Power over Ethernet (PoE)
- All cables meet or exceed the requirement proposed by TIA /EIA 568 B .2 ,ISO/IEC
Applications:
-
- Broadband Video.
- Gigabit Ethernet.
- Fast Ethernet.
Technical Characteristics:
| Shielding | UTP Indoor |
| Conductor | 24 AWG Solid Copper |
| Insulation | Polyolefin |
| Impedance | 100Ω ±15Ω |
| Operating Temperature | –20°C to +60°C |
| Jacket | PVC/LSZH |
| Structure | 4 Pairs |
| Length | 100 meters |
| Color | Gray |

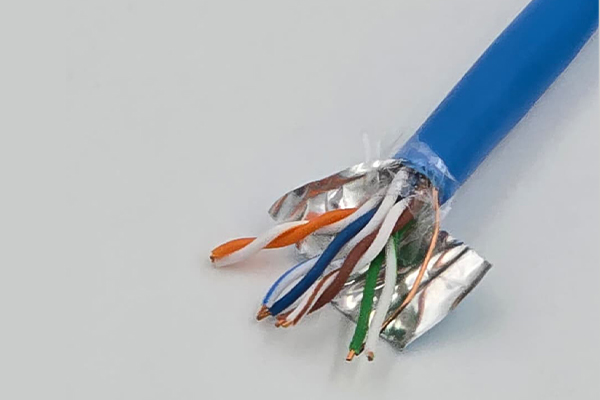

SSTP Cat5e Networking cable
The FTT’s SSTP Cat5e (Screened Shielded Twisted Pair Category 5e) Networking Cable is a high-performance copper cable designed for environments with high electromagnetic interference (EMI).
It features individually shielded twisted pairs combined with an overall braided shield, providing superior protection against external noise and internal crosstalk.
This makes it ideal for stable and secure Gigabit Ethernet (1Gbps) data transmission in demanding industrial and commercial applications.
Key Features:
- Supports Data Rates up to 1Gbps (1000Base-T)
- Bandwidth up to 100 MHz
- Dual Shielding Design (Foil + Braided Shield)
- Maximum Noise Immunity
- Enhanced Grounding
- High Signal Integrity and Stability
- RJ45 Standard Compatibility
- Supports Power over Ethernet (PoE)
Applications:
- Industrial Environments
- Data Centers
- High-Interference Areas (Factories, Power Rooms)
- Telecom Rooms
- Structured Cabling Systems
Technical Characteristics:
| Shielding | SSTP Outdoor |
| Conductor | 24 AWG Solid Copper |
| Insulation | Polyolefin |
| Impedance | 100Ω ±15Ω |
| Operating Temperature | –10°C to +75°C |
| Jacket | PVC/LSZH |
| Structure | 4 Pairs |
| Length | 300 meters |
| Color | Gray |

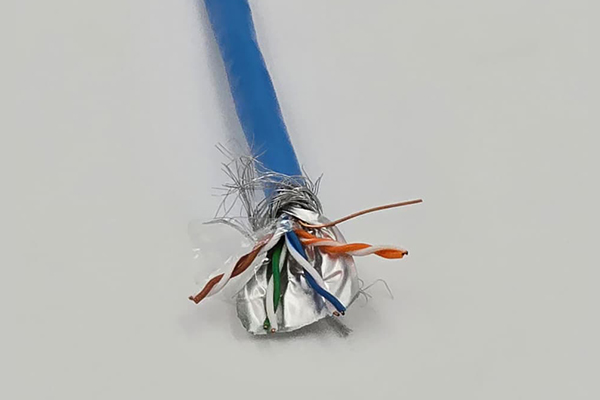

SFTP Cat5e Networking cable
FTT’s SFTP (Shielded Foil Twisted Pair) Category 5e cable is a high-performance cabling solution designed for maximum shielding effectiveness. It features an overall braid shield and an overall foil shield that work together to eliminate electromagnetic interference (EMI) and radio frequency interference (RFI). This makes it the perfect choice for environments where data integrity is critical and electrical noise is present.
Key Features:
- Supports Data Rates up to 1Gbps (1000Base-T)
- Bandwidth up to 100 MHz
- Dual Shielding Structure (Foil + Braided Shield)
- Excellent EMI/RFI Protection
- Reduced Crosstalk (NEXT & FEXT)
- High Signal Integrity and Stability
- Compatible with Shielded RJ45 Connectors
- Supports Power over Ethernet (PoE)
Technical Characteristics:
| Shielding | SFTP Outdoor |
| Conductor | 24 AWG Solid Copper |
| Insulation | Polyolefin |
| Impedance | 100Ω ±15Ω |
| Operating Temperature | –10°C to +75°C |
| Jacket | PVC/LSZH |
| Structure | 4 Pairs |
| Length | 300 meters |
| Color | Gray |
