FTT’s Category 6 (Cat6) cable is a high-speed twisted pair cable designed for Gigabit Ethernet and other network physical layers. It is backward compatible with Cat5 and Cat5e standards but features more stringent specifications for crosstalk and system noise. The Cat6 cable is the ideal choice for businesses and homes requiring a future-proof network infrastructure capable of handling high-bandwidth applications.

Key Features:

• Supports Data Rates up to 1Gbps (1000Base-T)
• Supports 10Gbps up to 55 meters
• Bandwidth up to 250 MHz
• Reduced Crosstalk
• Available in UTP, FTP, STP, and SFTP Versions
• RJ45 Standard Compatibility
• Supports Power over Ethernet
• Improved Performance over Cat5e

Applications

• High-Speed LAN Networks
• Data Centers
• Enterprise Networks
• IP Surveillance Systems
• VoIP & Multimedia Applications
• Structured Cabling Systems

FTT Cat6 Networking cables portfolio including

• UTP Cat6 Networking Cable
• SFTP Cat6 Networking Cable

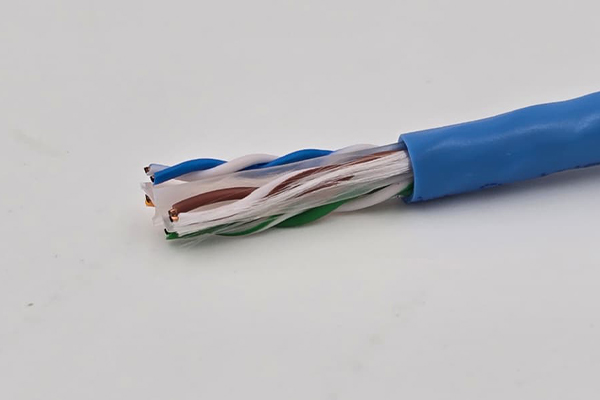

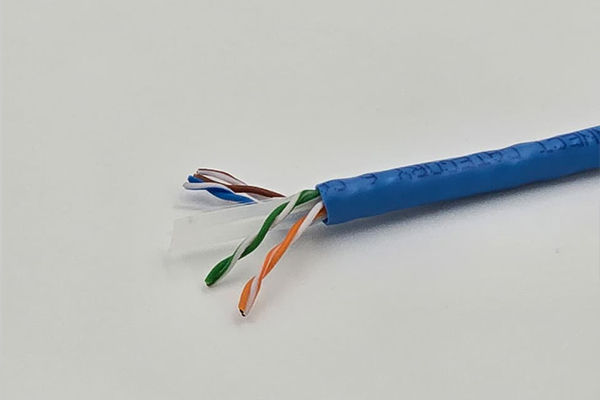

UTP Cat6 Networking Cable

The FTT’s Cat6 UTP (Unshielded Twisted Pair Category 6) Networking Cable is a high-performance copper cable designed for high-speed data transmission in Ethernet networks.
It features four unshielded twisted pairs with improved internal structure to minimize crosstalk and enhance signal integrity.
This cable supports Gigabit Ethernet and 10 Gigabit Ethernet over short distances, making it ideal for modern structured cabling systems.

Key Features:

• Supports Data Rates up to 1Gbps (1000Base-T)
• Supports 10Gbps up to 55 meters
• Bandwidth up to 250 MHz
• Unshielded Twisted Pair Design (UTP)
• Reduced Crosstalk (NEXT, FEXT)
• Lightweight and Flexible for Easy Installation
• RJ45 Standard Compatibility

Applications:

• Office & Enterprise Networks
• Home Networking
• Data Centers (Short Links)
• IP Telephony & CCTV Systems
• Structured Cabling Installations



Technical Characteristics:

Shielding	UTP Indoor
Conductor	(23, 24) AWG Solid Bare Copper
Insulation	PE, HDPE
Impedance	100Ω ±15Ω
Operating Temperature	–20°C to +75°C
Jacket	LSZH, PVC
Overall Diameter	8.0 ± 0.3 mm
Structure	4 Pairs
Length	300 meters
Application	High-speed Ethernet, Digital Video, Noisy Environments
Color	Gray

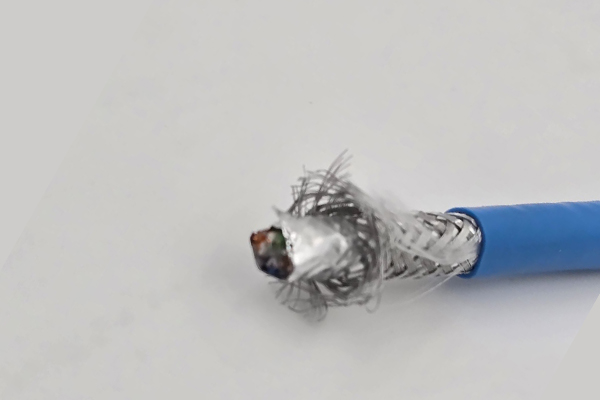

SFTP Cat6 Networking Cable

The SFTP Cat6 (Shielded Foiled Twisted Pair Category 6) Networking Cable is a high-performance copper cable designed for high-speed data transmission in environments with significant electromagnetic interference (EMI).
It features individually foil-shielded twisted pairs combined with an overall braided shield, ensuring excellent protection against external noise and internal crosstalk.
This cable supports Gigabit Ethernet and 10 Gigabit Ethernet over short distances, making it ideal for demanding network infrastructures.

Key Features:

• Supports Data Rates up to 1Gbps (1000Base-T)
• Supports 10Gbps up to 55 meters
• Bandwidth up to 250 MHz
• Dual Shielding (Foil per Pair + Overall Braided Shield)
• Excellent EMI/RFI Protection
• Reduced Crosstalk
• High Signal Integrity and Stability
• Compatible with Shielded RJ45 Connectors
• Supports Power over Ethernet

Applications:

• Industrial Networks
• Data Centers
• High EMI Environments (Factories, Power Rooms)
• Telecom Infrastructure
• Structured Cabling Systems

Technical Characteristics:

Shielding	SFTP Outdoor
Conductor	23 AWG SOLID PLAIN COPPER
Insulation	PE, HDPE
Impedance	100Ω ±15Ω
Operating Temperature	–20°C to +75°C
Jacket	LSZH, PVC
Overall Diameter	8.0 ± 0.3 mm
Structure	4 Pairs
Length	300 meters
Application	High-speed Ethernet, Digital Video, Noisy Environments
Color	Gray
