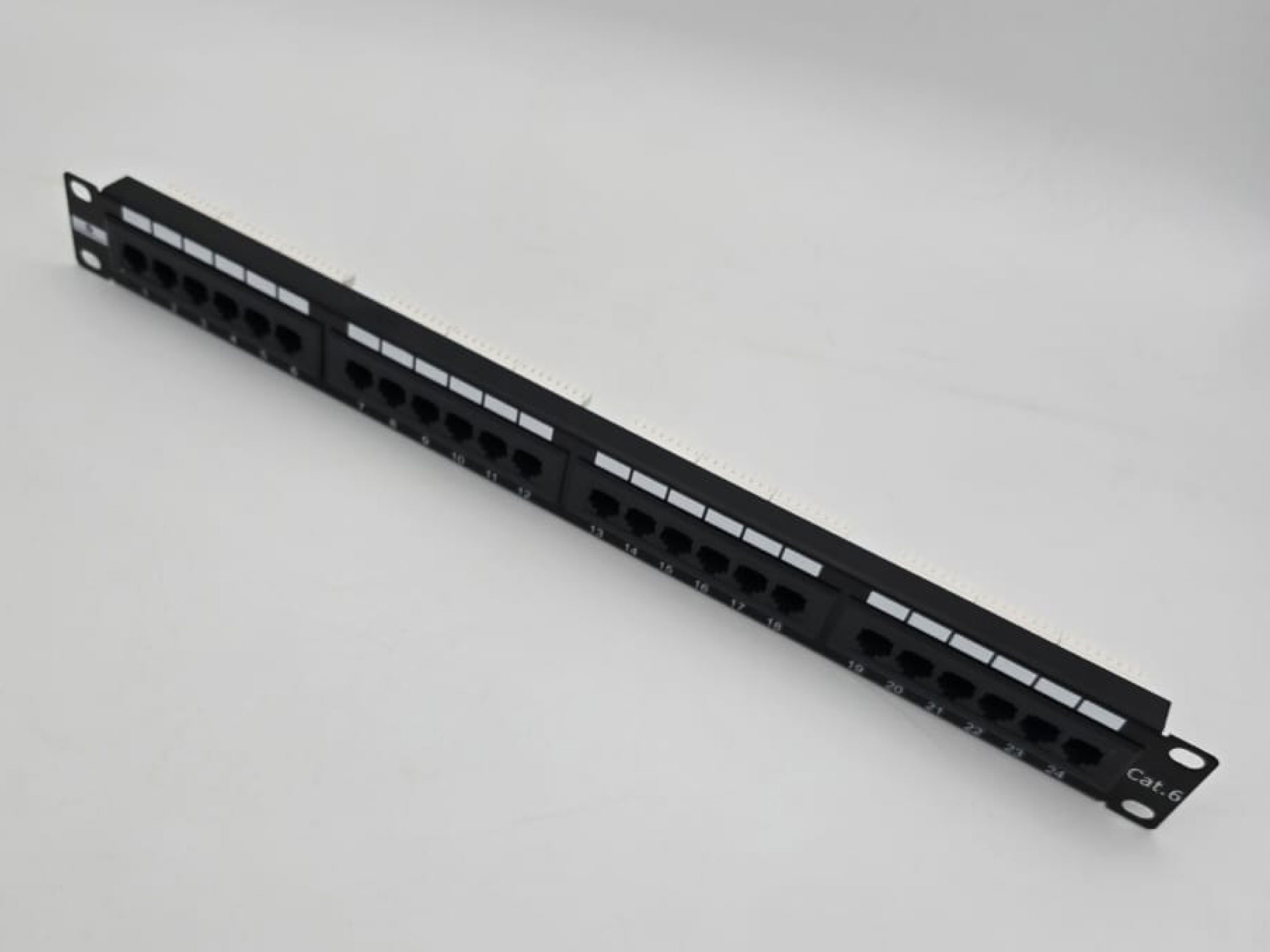

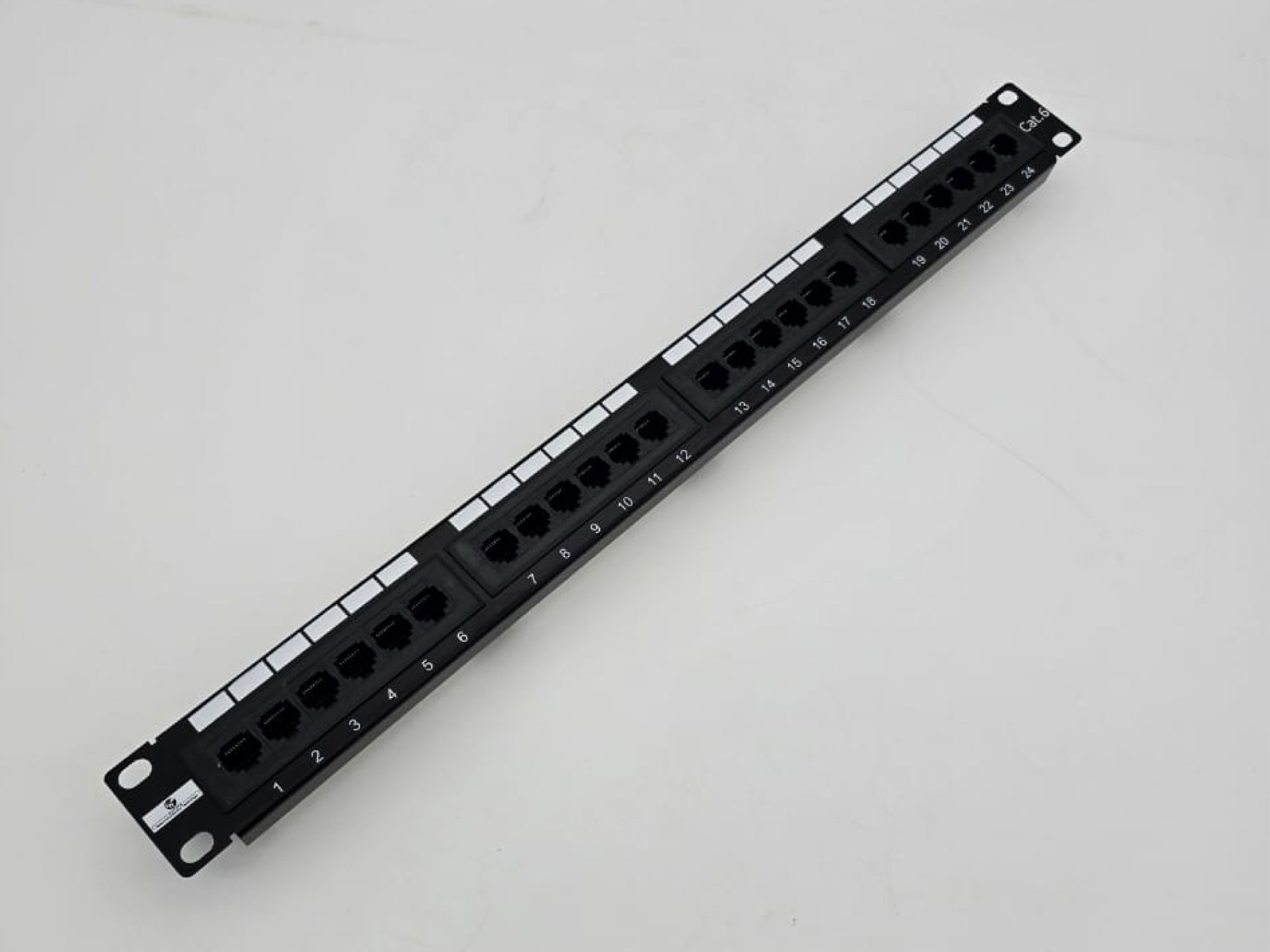

CAT6 Patch Panel 24P 1U – Non-Modular
The FTT’s Cat6 Patch Panel 24P 1U – Non-Modular is a high-performance rack-mount panel designed for terminating and organizing Category 6 UTP cables within structured cabling systems.
This fixed (non-modular) design features 24 integrated RJ45 ports pre-mounted on a 19-inch, 1U metal frame, providing reliable Gigabit Ethernet performance up to 250 MHz bandwidth. It is ideal for telecom rooms, server racks, and enterprise network cabinets.
Features:
- 24 × RJ45 ports (8P8C)
- 1U height – fits standard 19” racks & cabinets
- Non-modular fixed port design
- Supports Cat6 performance up to 250 MHz
- Supports 10/100/1000 Mbps (Gigabit Ethernet)
- Rear IDC 110 punch-down termination
- Compatible with T568A & T568B wiring standards
- Color-coded wiring labels
- Cable management bar included (optional depending on model)
- Durable steel frame with powder coating
Technical Specifications:
| Category | Cat6 |
| Shielding Type | UTP |
| Port Count | 24 |
| Form Factor | 1U, 19″ rack-mount |
| Material | Carbon steel frame, housing PB+15%GF UL94V-0 |
| Cable Compatibility | AWG 24–26 |
| Electrical Performance | Voltage rating 125V AC RMS, Current 1.5A, Contact resistance ≤100 mΩ |
| Mechanical Durability | RJ45 jack ≥750 insertions, IDC ≥200 terminations |
| Operating Environment | Storage –40°C to +85°C, Operation 0°C to +70°C |
