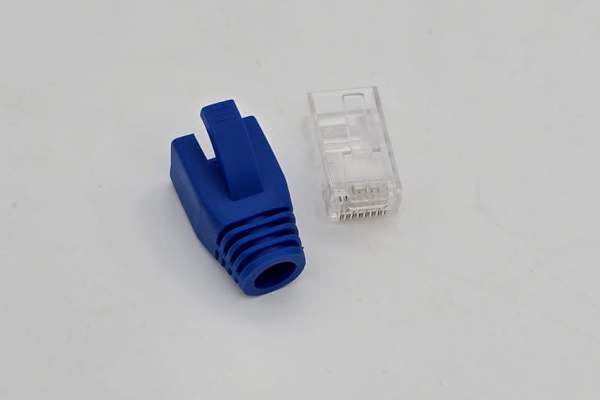

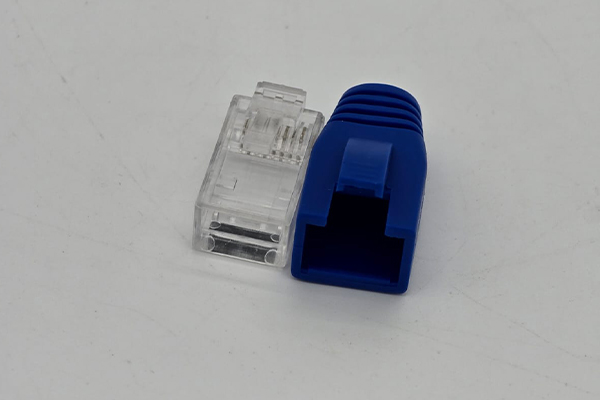

The Cat6 UTP Modular Connector is a high-performance 8P8C plug designed for terminating Category 6 unshielded twisted pair (UTP) cables in Ethernet networking systems. It ensures reliable high-speed data transmission and stable connectivity between network cables and active equipment such as switches, routers, patch panels, and data outlets.

Designed for standard high-speed gigabit Ethernet networks, this unshielded RJ45 connector is ideal for clean office and residential environments where electromagnetic interference is minimal. It offers an easy, efficient installation process.

Features:

1. 8 Position / 8 Contact (8P8C) configurations.
2. Designed specifically for Cat6 UTP cables (23–24 AWG conductors).
3. Supports bandwidth up to 250 MHz.
4. Supports data rates up to 1 Gbps (10/100/1000 Mbps).
5. Transparent polycarbonate housing for easy wire inspection.
6. Available in standard and pass-through versions.
7. Exclusive stagger conductors guide design reduces near-end crosstalk.



Technical Specifications:

Connector Type	RJ45 (8P8C)
Cable Type	Cat6 UTP
Conductor Size	24–26 AWG solid
Contact Material	High-strength Polycarbonate (Clear Plastic)
Housing Material	Clear Polycarbonate
Operating Temperature	-20°C to +60°C
