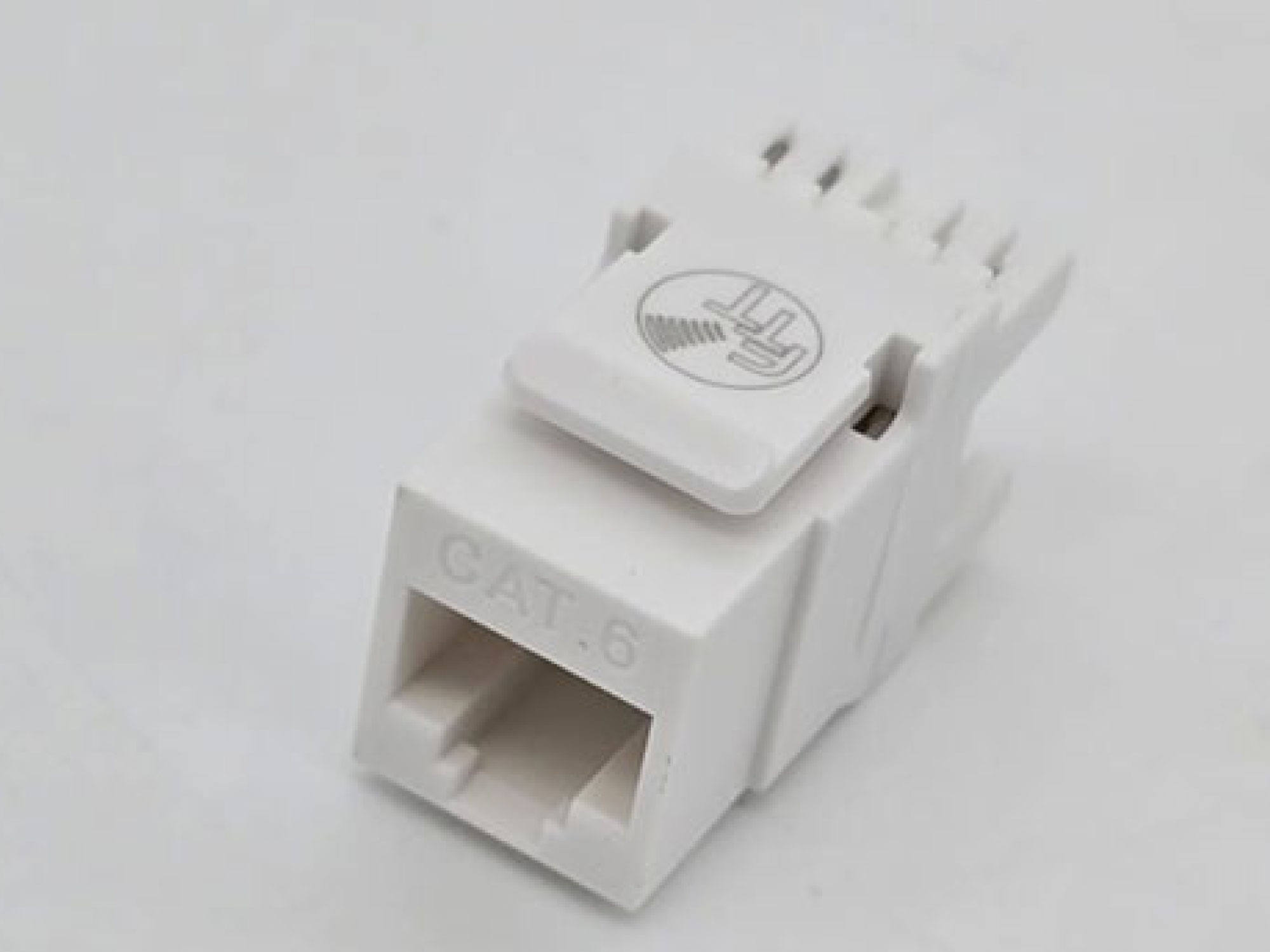

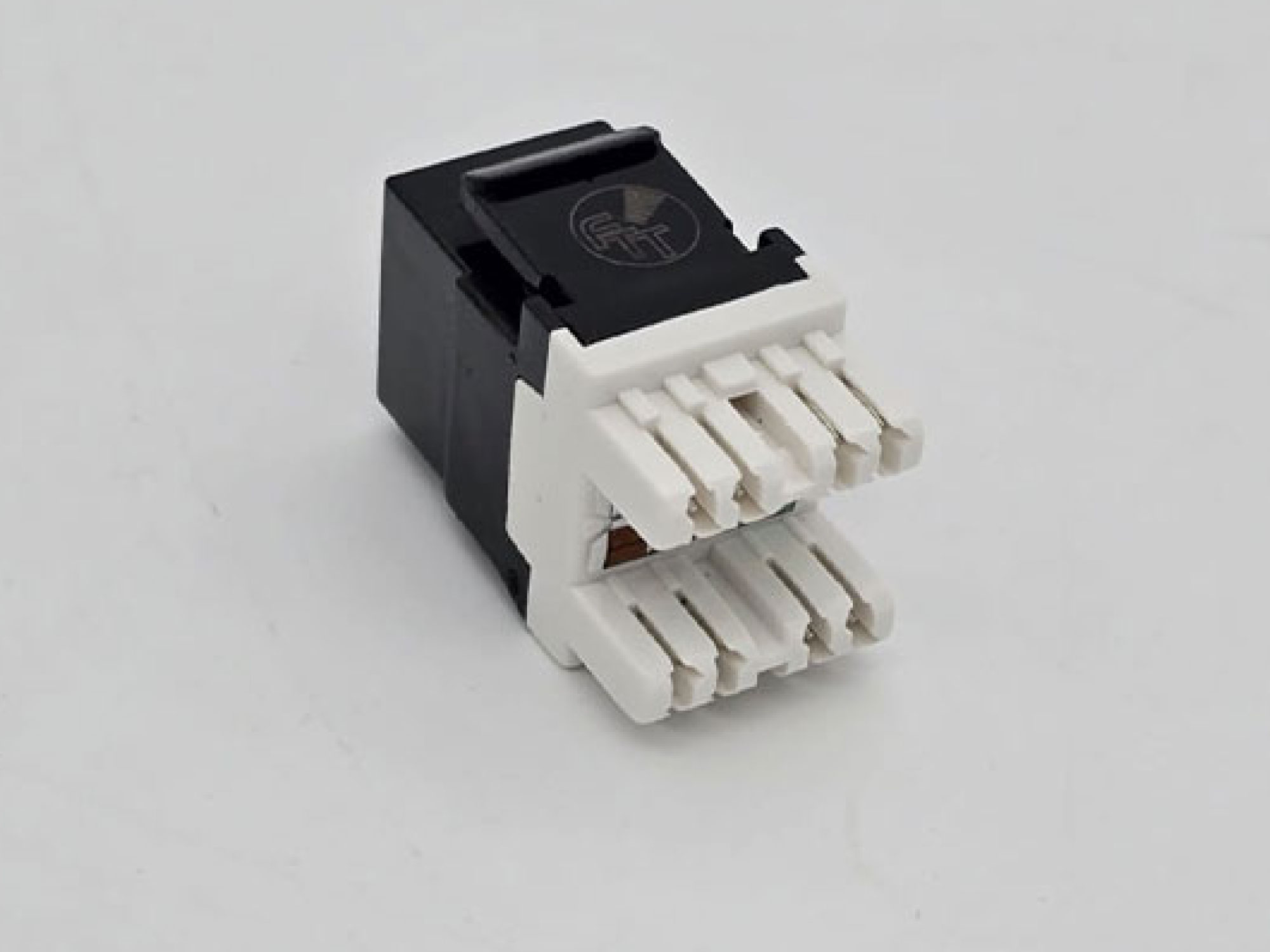

The Cat6 UTP Keystone Jack is a high-performance unshielded modular outlet designed for terminating Category 6 UTP twisted pair cables in structured cabling systems.

It provides a reliable connection point for Ethernet networks and is typically installed in faceplates, wall outlets, patch panels, and surface mount boxes. Engineered to meet Cat6 performance standards, it supports Gigabit Ethernet applications with improved crosstalk and signal integrity

Features:

1. RJ45 8P8C female interface.
2. Designed for Cat6 UTP cables (22–26 AWG solid conductors).
3. Bandwidth up to 250 MHz.
4. Supports 10/100/1000 Mbps (Gigabit Ethernet).
5. Punch-down termination.
6. Compatible with T568A & T568B wiring standards.
7. Snap-in keystone design for easy installation.
8. Color-coded wiring labels for fast termination.
9. Compact and durable plastic housing.
10. Low attenuation loss.



Technical Specifications:

Cable Category	Cat6
Shielding	UTP
Termination Type	Punch-down
Housing Material	High temperature thermoplastic
Contact Material	Phosphor bronze, 6–50μ gold plating
Compatible Wire Gauge	22–26 AWG
Durability	High reliability, V-style IDC contacts
Operating Temperature	-20°C to +60°C
Bandwidth	250 MHz
