FTT’s Category 6a (Cat6a) cable is a high-performance copper solution engineered for the most demanding network environments. While Cat6 is limited at long distances, Cat6a is specifically designed to support data rates of 10 Gigabits per second (10Gbps) over the full allowable length of 100 meters. With a doubled bandwidth frequency of 500 MHz, it is the definitive choice for future-proofing enterprise networks and high-capacity data centers.

Key Features:

• Supports Data Rates up to 10Gbps (10GBase-T)
• Full 10Gbps performance up to 100 meters
• Bandwidth up to 500 MHz
• Superior Crosstalk Reduction (NEXT, FEXT, Alien Crosstalk)
• Available in UTP, FTP, and SFTP Versions
• RJ45 Standard Compatibility
• Supports Power over Ethernet
• Improved Shielding for High EMI Environments

Applications:

• Data Centers
• Enterprise Networks
• High-Speed LAN Infrastructure
• Server Rooms
• IP Surveillance & Multimedia Systems
• Structured Cabling Systems



FTT Cat6a Networking cables portfolio including:

• UTP Cat6a Networking cable
• SFTP Cat6a Networking cable

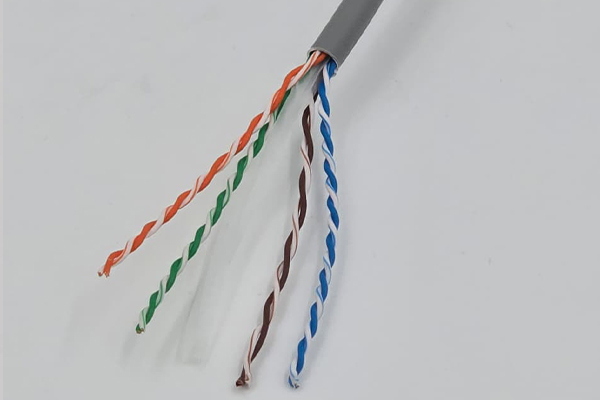

UTP Cat6a Networking cable

The UTP Cat6A (Unshielded Twisted Pair Category 6 Augmented) Networking Cable is a high-performance copper cable designed to support 10 Gigabit Ethernet (10GBase-T) over full channel distances up to 100 meters.
It features an optimized internal structure with enhanced pair separation to minimize crosstalk and maintain signal integrity without the use of shielding.
This makes it a cost-effective and reliable solution for high-speed network installations in low to moderate EMI environments.

Key Features:

• Supports Data Rates up to 10Gbps (10GBase-T)
• Full 10Gbps transmission up to 100 meters
• Bandwidth up to 500 MHz
• Unshielded Twisted Pair Design (UTP)
• Advanced Crosstalk Reduction (NEXT, FEXT, Alien Crosstalk)
• Lightweight and Flexible for Easy Installation
• RJ45 Standard Compatibility
• Supports Power over Ethernet

Applications:

• Enterprise Networks
• Office Buildings
• Data Centers (Low EMI Areas)
• High-Speed LAN Infrastructure
• IP Surveillance & VoIP Systems
• Structured Cabling Systems



Technical Characteristics:

Shielding	UTP
Conductor	23 AWG Solid Bare Copper
Insulation	Foamed PE
Jacket	HDPE / Fire Retardant
Frequency	Up to 650 MHz
Length	500 meters (plywood drum)
Application	10GBase-T, Indoor/Outdoor, Fire-Safe Ethernet
Color	Blue

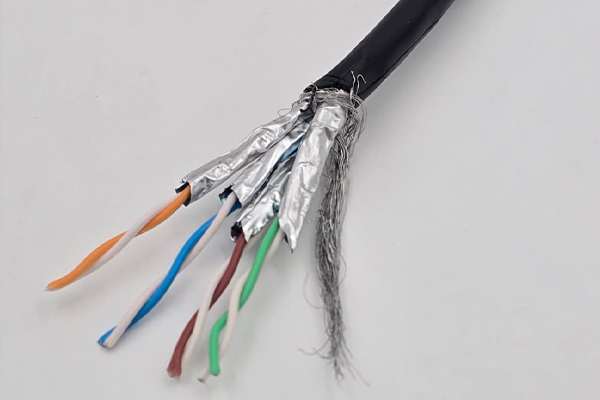

SFTP Cat6a Networking cable:

The SFTP Cat6A (Shielded Foiled Twisted Pair Category 6 Augmented) Networking Cable is a high-performance copper cable engineered for 10 Gigabit Ethernet (10GBase-T) transmission over full distances up to 100 meters.
It features individually foil-shielded twisted pairs combined with an overall braided shield, providing maximum protection against electromagnetic interference (EMI) and alien crosstalk.
This cable is ideal for high-density and high-interference environments such as data centers and industrial networks.

Key Features:

• Supports Data Rates up to 10Gbps (10GBase-T)
• Full 10Gbps transmission up to 100 meters
• Bandwidth up to 500 MHz
• Dual Shielding (Foil per Pair + Overall Braided Shield)
• Excellent EMI/RFI Protection
• Superior Alien Crosstalk Suppression
• High Signal Integrity and Reliability
• Compatible with Shielded RJ45 Connectors
• Supports Power over Ethernet

Applications:

• Data Centers
• Industrial Networks
• High EMI Environments
• Telecom Infrastructure
• High-Speed Enterprise Networks
• Structured Cabling Systems

Technical Characteristics:

Shielding	SFTP (Foil + Braid)
Conductor	23 AWG Solid Bare Copper
Insulation	Foamed PE
Jacket	HDPE / Fire Retardant
Frequency	Up to 650 MHz
Length	500 meters (plywood drum)
Application	10GBase-T, Indoor/Outdoor, Fire-Safe Ethernet
Color	Blue
