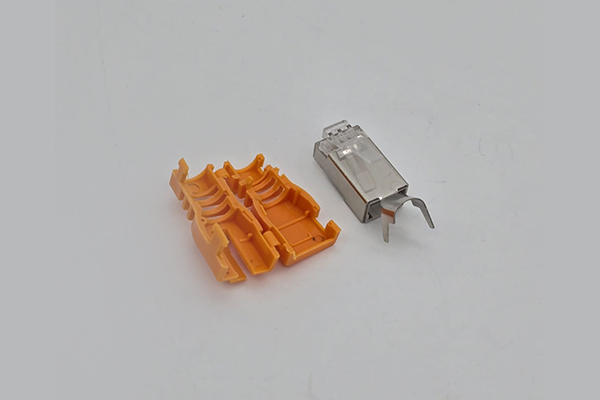

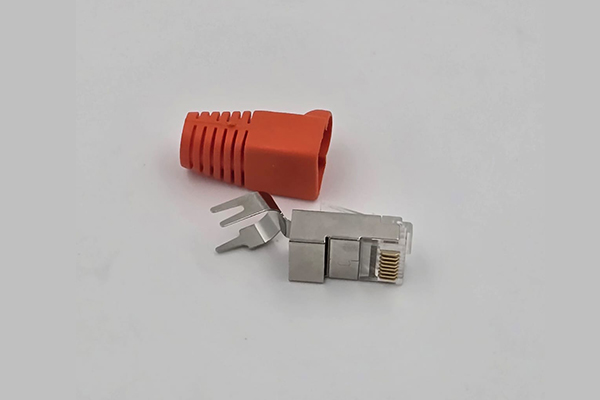

The Cat6A SFTP CONNECTOR is a high-performance, shielded modular plug designed for on-site termination of Category 6A twisted pair cables.
A heavy-duty connector designed for absolute performance stability in high-density corporate environments. It combines 10Gbps capability with superior dual-layer shielding to suppress alien crosstalk and external noise in tight bundles of cables.
Key Features
- RJ45 8P8C shielded configuration
- Designed for Cat6A cables (24–26 AWG solid conductors)
- Supports 10 Gigabit Ethernet (10GBASE-T) up to 100 meters
- 360° metal shielding for superior EMI protection
- Gold-plated contacts (50µ”) for enhanced conductivity
- Reusable design (depending on model)
Technical Specifications:
| Connector Type | Shielded RJ45 (8P8C) |
| Cable Type | Cat6a |
| Conductor Size | 24–26 AWG solid |
| Contact Material | Nickel-plated Brass / Zinc Die-cast Housing |
| Housing Material | Zinc Alloy |
| Shielding Type | SFTP |
| Operating Temperature | -40°C to +60°C |
