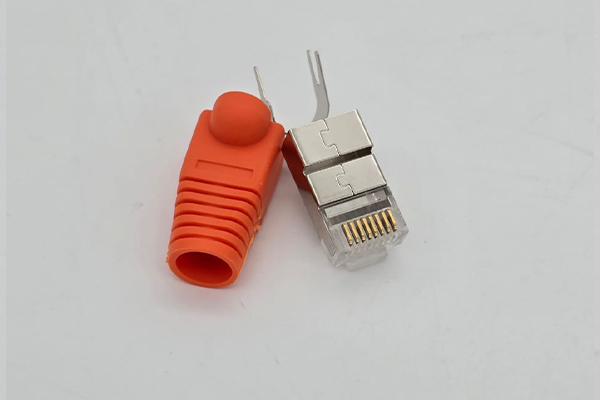

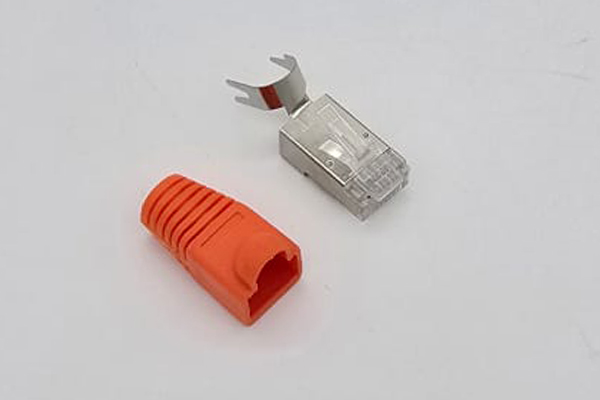

CAT6a SFTP CONNECTOR:
The Cat6a SFTP Connector is a high-performance shielded modular plug designed for terminating, Category 6A SFTP (Shielded Foiled Twisted Pair) cables in high-speed Ethernet networks.
IT engineered to support 10 Gigabit Ethernet applications, this connector ensures superior protection against electromagnetic interference (EMI) and alien crosstalk, making it ideal for high-density installations and data centers.it is High humidity and dielectric resistance.
Key Features
- 8 Position / 8 Contact (8P8C) configuration
- Designed for Cat6a SFTP cables (24-26 AWG conductors)
- Individually shielded pairs + overall braided shield support
- Bandwidth up to 500 MHz
- Supports 10GBASE-T (10 Gbps) transmission up to 100 meters
- Full metal housing for 360° shielding continuity
- Gold-plated contacts (50µ”) for optimal signal integrity
- Available in standard, pass-through, and field-termination types
Technical Specifications:
| Connector Type | Shielded RJ45 (8P8C) |
| Cable Type | Cat6a SFTP |
| Conductor Size | 24–26 AWG solid |
| Contact Material | Phosphor bronze, 50μ gold over nickel |
| Housing Material | Clear Polycarbonate UL 94V-0 or 94V-2 |
| Shielding Type | Individual Foil + Overall Braid |
| Operating Temperature | -40°C to +70°C |
| Termination Method | Crimping Tool |
