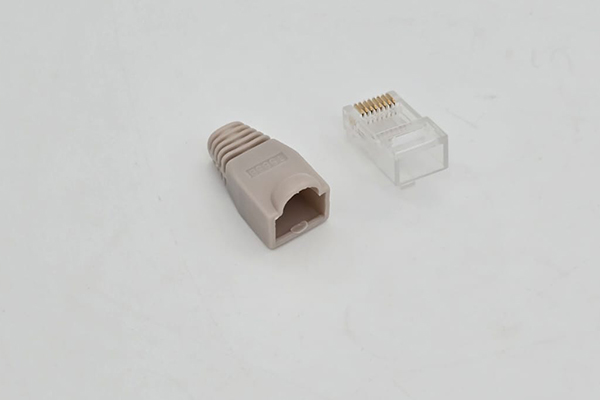

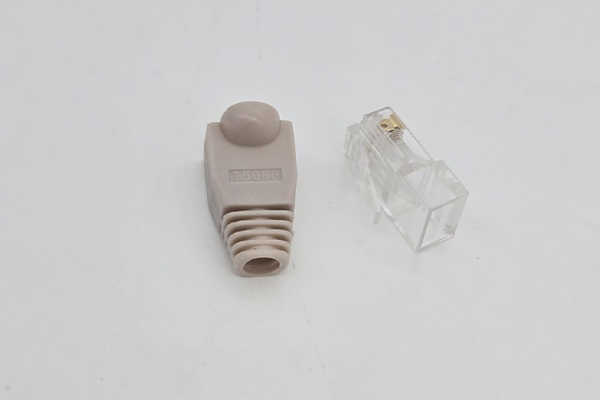

The Cat6a UTP Connector is a heavy-duty, field-termination modular plug designed for Category 6A unshielded twisted pair (UTP) cables.
Optimized for Augmented Category 6 specifications, this unshielded connector supports full 10 Gigabit data speeds over the entire 100-meter length without the need for complex grounding, making it an excellent cost-effective choice for modern enterprise networks.
Features:
- RJ45 8P8C unshielded configuration
- Designed for Cat6a UTP cables (24–26 AWG)
- Supports bandwidth up to 500 MHz
- Supports 10Gbps (10GBASE-T) up to 100 meters
- High gold-plated contacts (30-50µ”) for stable signal transmission
Technical Specifications:
| Connector Type | Unshielded RJ45 (8P8C) |
| Cable Type | Cat6a UTP |
| Conductor Size | 24–26 AWG solid |
| Contact Material | Enhanced High-density Polycarbonate |
| Housing Material | Plastic/Metal Composite |
| Shielding Type | UTP |
| Operating Temperature | -40°C to +60°C |
