CAT6a UTP KEYSTONE JACK
The Cat6a UTP Keystone Jack is a high-performance unshielded modular outlet designed for terminating Category 6a UTP twisted pair cables in structured cabling systems.
Engineered to support 10 Gigabit Ethernet applications, this keystone jack delivers reliable data transmission up to 500 MHz bandwidth while maintaining excellent signal integrity and reduced crosstalk performance. It also supports high-density and PoE applications.
Features:
- RJ45 8P8C female interface
- Designed for Cat6a UTP cables (22–26 AWG solid conductors)
- Supports bandwidth up to 500 MHz
- Supports 10GBASE-T (10 Gbps) up to 100 meters
- Tool-less termination
- Compatible with T568A & T568B wiring standards
- Snap-in keystone design for faceplates and patch panels
- Color-coded termination labels
- Enhanced internal design for improved alien crosstalk performance
Technical Specifications:
| Cable Category | Cat6a |
| Shielding | UTP |
| Termination Type | Tool-less |
| Housing Material | Plastic |
| Contact Material | Gold-plated phosphor bronze |
| Compatible Wire Gauge | 22–26 AWG |
| Durability | ≥750 mating cycles |
| Operating Temperature | -20°C to +60°C |
| Bandwidth | 500 MHz |

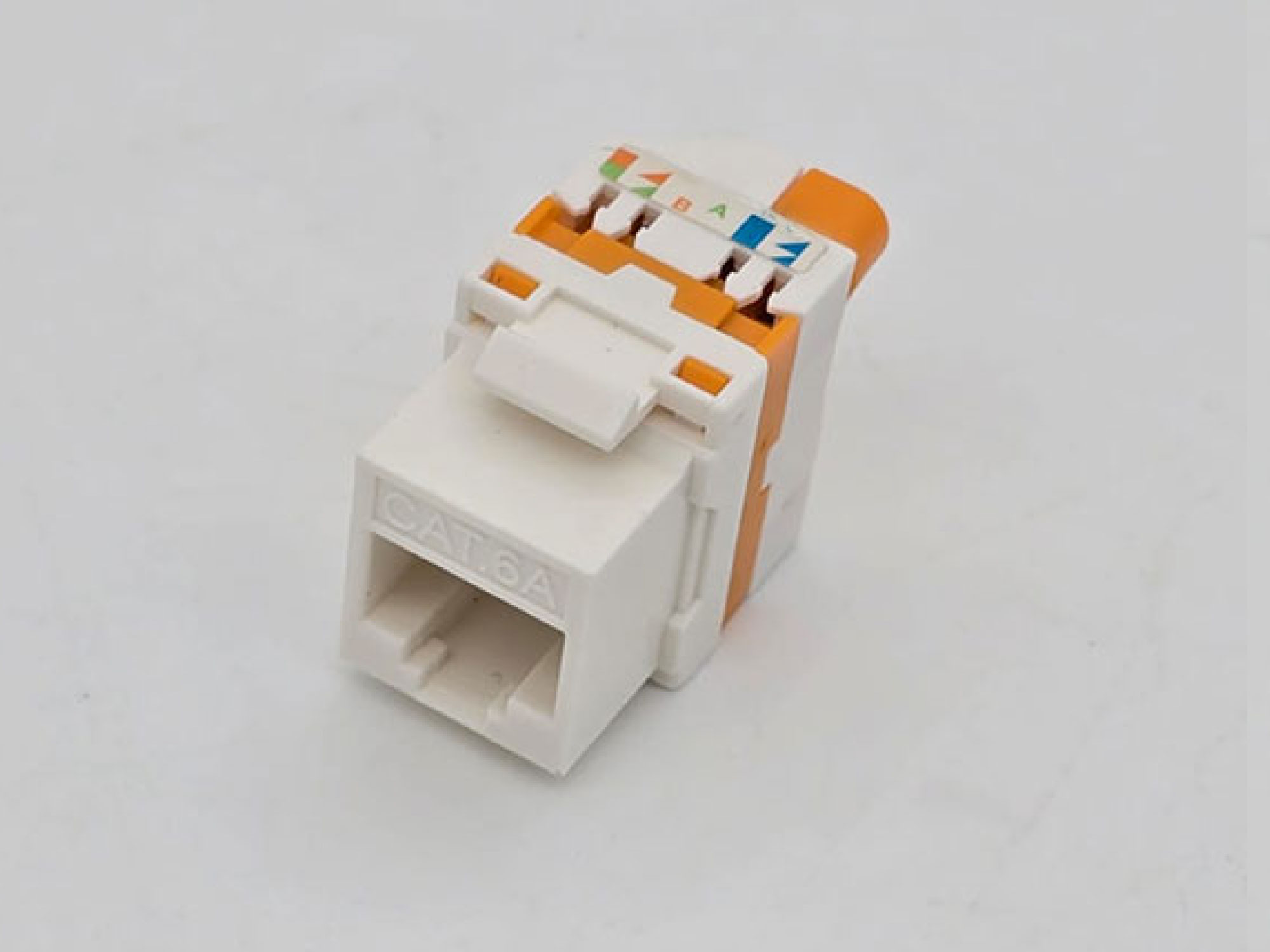

FTT Networking Keystone Jack Cat6a Unshielded toolless type Orange Inline 180D

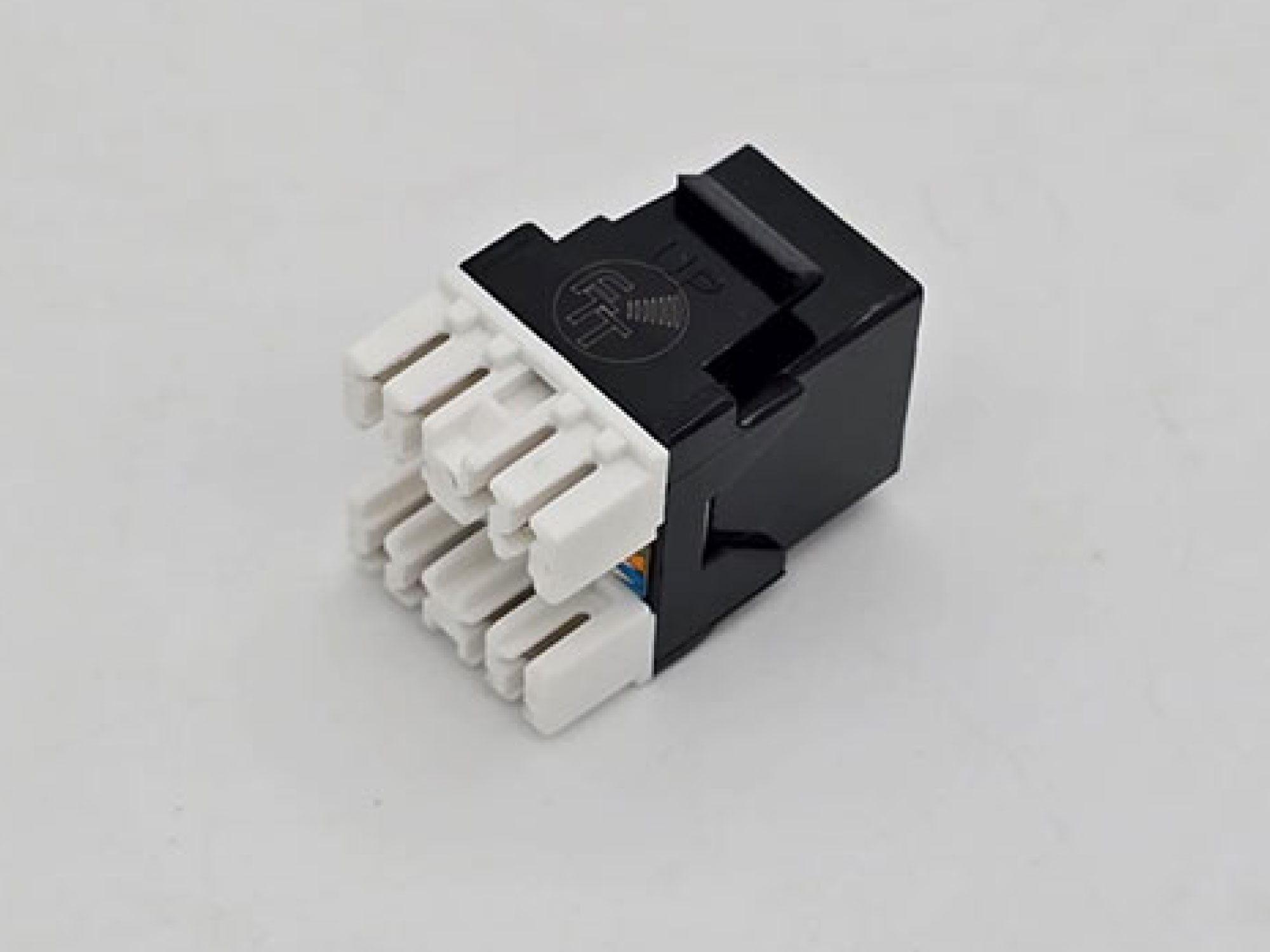

Cat6a Unshielded tool type Black
