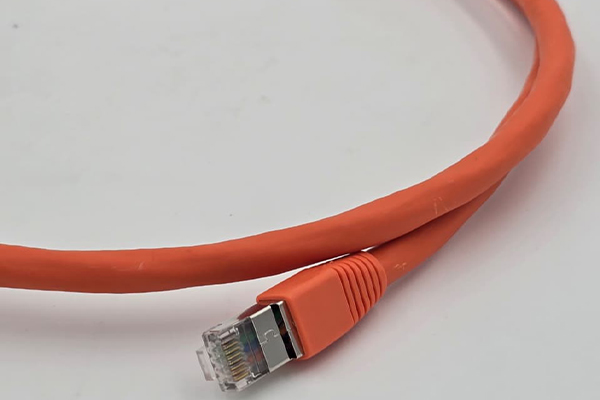

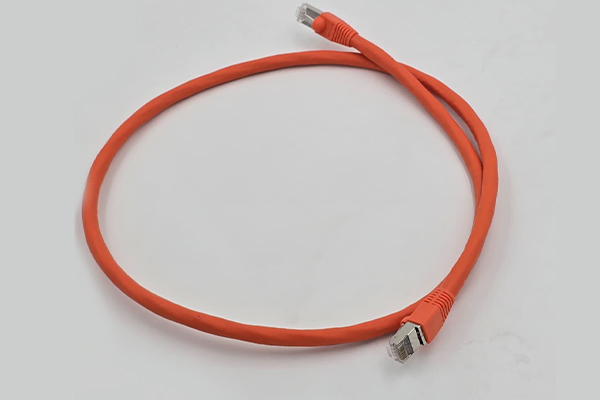

FTT’s Category 7 SFTP Patch Cords represent the pinnacle of Ethernet over copper technology. These cables are engineered to support transmission frequencies of up to 600 MHz over 100 meters of fully shielded cabling. Specifically designed for 10 Gigabit Ethernet and beyond, they exceed the current ISO/IEC specifications to ensure a stable and high-speed network environment. It features individually foil-shielded twisted pairs combined with an overall braided shield, delivering exceptional protection against electromagnetic interference (EMI) and alien crosstalk.
This ensures superior signal integrity and stable performance in high-density, high-interference environments such as data centers and industrial networks.
Key Features:
- Supports Data Rates up to 10Gbps (10GBase-T)
- Bandwidth up to 600 MHz
- Full Shielding (SFTP: Foil per Pair + Overall Braided Shield)
- Excellent EMI/RFI Protection
- Superior Alien Crosstalk Suppression
- High Signal Integrity and Low Signal Loss
- Pre-terminated Shielded Connectors (RJ45 / GG45 / TERA)
- Plug-and-Play Installation
- Supports PoE / PoE+ / PoE++
- Backward Compatible with Cat6A / Cat6 / Cat5e
Applications:
- Data Centers
- High-Speed Enterprise Networks
- Industrial Automation Systems
- Server Rooms
- High-Bandwidth Applications (Streaming, Cloud, Video)
Technical Characteristics:
| Cable Type | SFTP (Fully Shielded) |
| Shielding Structure | Individual Pair Foil Shielding, Overall Braided Copper Shield |
| Conductor Type | Stranded Copper |
| Conductor Size | 22–23 AWG |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Impedance | 100 Ohms |
| Bandwidth | Up to 600 MHz |
| Data Rate | 10Gbps up to 100m |
| Connector Type | GG45 / TERA (Standard) ,RJ45 (Commonly used for compatibility) |
| Cable Length | 0.3m – 30m (Custom Available) |
| Jacket Type | PVC / LSZH |
| Operating Temperature | -20°C to +60°C |
