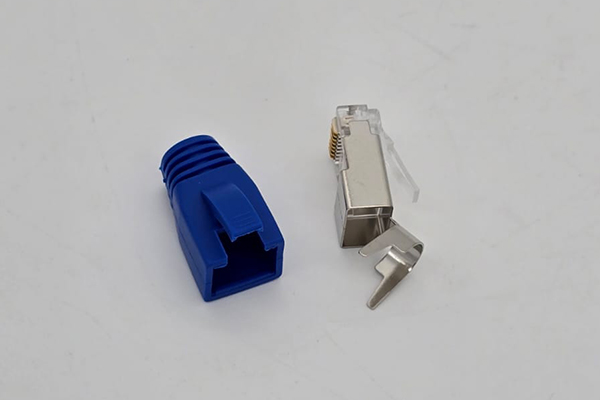

The Cat7 SFTP Connector is a high-end shielded modular connector designed for terminating Category 7 SFTP (Shielded Foiled Twisted Pair) cables in ultra-high-speed Ethernet networks.
It provides superior protection against electromagnetic interference (EMI) and alien crosstalk through individually foil-shielded pairs and an overall braided shield, ensuring maximum signal integrity in high-density and high-noise environments. Also it is High dielectric and humidity resistance
Features:
- 8P8C RJ45-compatible or specialized Cat7 interface
- Designed for Cat7 SFTP cables (24–26AWG conductors)
- Bandwidth up to 600 MHz
- Supports 10 Gigabit Ethernet (10GBASE-T) up to 100 meters
- Full metal housing for 360° shielding continuity
- Gold-plated contacts (typically 50µ”)
- Enhanced NEXT & Alien Crosstalk performance
- Available in tool-based and toolless field termination version
Technical Specifications:
| Connector Type | Shielded RJ45 (8P8C) |
| Cable Type | Cat7 SFTP |
| Conductor Size | 24–26 AWG solid |
| Contact Material | Premium Die-cast Zinc Shielded Shell |
| Housing Material | Polycarbonate UL 94V-0 or 94V-2 |
| Shielding Type | SFTP |
| Operating Temperature | -40°C to +70°C |
