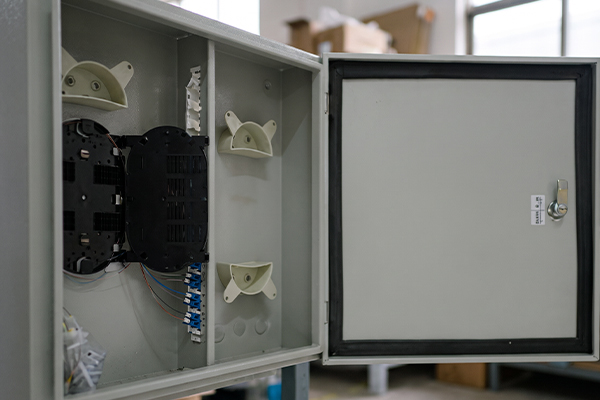

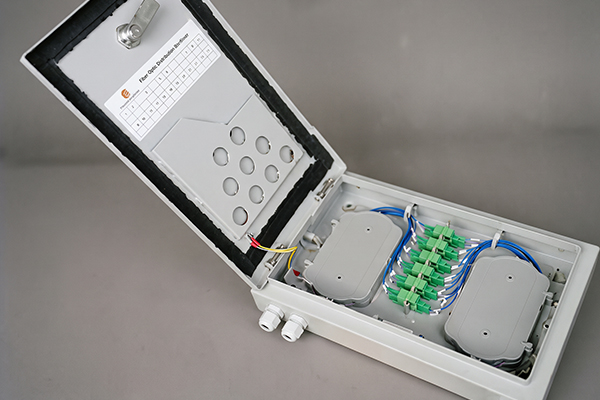

The FTT ODB Patch Panel is a high-capacity fiber optic distribution unit designed for Fiber-to-the-X (FTTx) network applications.
It integrates fiber termination, splicing, patching, splitting, and distribution functions into a single enclosure, providing an efficient solution for feeder-to-distribution fiber management in access and last-mile networks.
The unit is engineered to support structured fiber routing, secure cable fixation, and reliable environmental protection while maintaining optimal optical performance.
Key Features:
- Wall mountable, suitable for indoor and outdoor use and maintaining connectors.
- Organized fiber routing with bend radius control.
- SPCC material, rugged and reliable.
- Supports 1×16 / 1×8 / 1×4 / 1×2 splitter, compliant with high capacity.
- Compliant with fast-connector and FTTH cable.
Applications:
- Comprehensive Computer Network Engineering.
- Fiber To The Home(FTTH)
- Intelligent Building Cabling.
- Communications systems, computer center, broad casting system.
- Campus Network, Enterprise Network.
Optical performance
| Insert loss | ≤0.3dB |
| Return loss | ≥50dB (PC / UPC) , ≥60dB(APC) |
| Durability | ≥1000 Mating |
Operating Environments
| Operating temperature | -25°C to +40°C |
| Storage temperature | -25°C to +55°C |
| Relative humidity | ≤85% |
| Air pressure | 70Kpa ~ 106Kpa |
