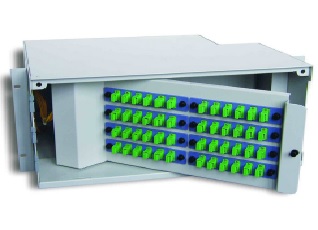

The Optical Distribution Frame (ODF) is a high-capacity fiber management system designed for termination, splicing, cross-connection, storage, and distribution of optical fiber cables in central offices, telecom exchanges, data centers, and backbone networks.
It provides structured fiber routing, secure cable fixation, and reliable protection for fiber optic connections while maintaining proper bend radius control and long-term stability.
Key Features
- Modular and scalable design.
- High fiber capacity configuration.
- Front-access operation for easy maintenance.
- Independent splice and patching areas.
- Clear fiber routing management system.
- High mechanical strength steel frame.
- Flexible adapter panel configuration.
Application
- Optical Access Network (OAN).
- Data processing centers.
- Cable television (CATV).
- Local area network (LAN).
- Coarse Wavelength Division Multiplexer (CWDM).
Optical performance
| Insert loss | ≤0.3dB |
| Return loss | ≥50dB (PC / UPC) , ≥60dB(APC) |
| Durability | ≥1000 Mating |
Operating Environments
| Operating temperature | -25°C to +40°C |
| Storage temperature | -25°C to +55°C |
| Relative humidity | ≤85% |
| Air pressure | 70Kpa ~ 106Kpa |
