FFT’s Patch cords are high quality factory terminated cables used for short distance connections in data centers, office LANs, and telecommunication rooms. It used to connect network devices such as computers, switches, patch panels, and routers within a structured cabling system. Unlike bulk cables, patch cords are designed for flexibility and frequent plugging/unplugging, ensuring a stable and secure link between network components because they are typically pre-terminated with connectors on both ends.

Key Features:

• Pre-Terminated Connectors for plug-and-play use.
• High Flexibility for easy routing and management.
• Reliable Signal Transmission.
• Available in Various Lengths (0.5m, 1m, 2m, etc.).
• Color-Coded Options for easy identification.
• High Compatibility with networking equipment.
• Quick installation without termination.
• Reduces installation errors.
• Improves cable management and organization.

Applications:

• Data Centers.
• Enterprise Networks.
• Server Rooms.
• Telecom Infrastructure.
• Patch Panels & Switch Connections.



FFT’s Networking Patch Cords Portfolio Including:

• Cat5e Networking Patch Cords.

• Cat6 Networking Patch Cords.

• Cat6a Networking Patch Cords.

• Cat7 Networking Patch Cords.





Cat7 SFTP Networking Patch Cords

FTT’s Category 7 SFTP Patch Cords represent the pinnacle of Ethernet over copper technology. These cables are engineered to support transmission frequencies of up to 600 MHz over 100 meters of fully shielded cabling. Specifically designed for 10 Gigabit Ethernet and beyond, they exceed the current ISO/IEC specifications to ensure a stable and high-speed network environment. It features individually foil-shielded twisted pairs combined with an overall braided shield, delivering exceptional protection against electromagnetic interference (EMI) and alien crosstalk.

This ensures superior signal integrity and stable performance in high-density, high-interference environments such as data centers and industrial networks.

Key Features:

• Supports Data Rates up to 10Gbps (10GBase-T)
• Bandwidth up to 600 MHz
• Full Shielding (SFTP: Foil per Pair + Overall Braided Shield)
• Excellent EMI/RFI Protection
• Superior Alien Crosstalk Suppression
• High Signal Integrity and Low Signal Loss
• Pre-terminated Shielded Connectors (RJ45 / GG45 / TERA)
• Plug-and-Play Installation
• Supports PoE / PoE+ / PoE++
• Backward Compatible with Cat6A / Cat6 / Cat5e

Applications:

• Data Centers
• High-Speed Enterprise Networks
• Industrial Automation Systems
• Server Rooms
• High-Bandwidth Applications (Streaming, Cloud, Video)

Technical Characteristics:

Cable Type	SFTP (Fully Shielded)
Shielding Structure	Individual Pair Foil Shielding, Overall    Braided Copper Shield
Conductor Type	Stranded Copper
Conductor Size	22–23 AWG
Number of Pairs	4 Pairs (8 Conductors)
Impedance	100 Ohms
Bandwidth	Up to 600 MHz
Data Rate	10Gbps up to 100m
Connector Type	GG45 / TERA (Standard) ,RJ45 (Commonly used for compatibility)
Cable Length	0.3m – 30m (Custom Available)
Jacket Type	PVC / LSZH
Operating Temperature	-20°C to +60°C



Cat6A Networking Patch Cord

The Cat6A Networking Patch Cord is a high-performance pre-terminated copper cable designed to support 10 Gigabit Ethernet (10GBase-T) over distances up to 100 meters. It is manufactured using Category 6A cable with stranded copper conductors and terminated with RJ45 connectors, ensuring flexibility, durability, and reliable high-speed data transmission. Cat6A patch cords are ideal for data centers, enterprise networks, and high-density installations requiring stable and interference-free performance.

Key Features:

• Supports Data Rates up to 10Gbps
• Pre-terminated RJ45 Connectors (Plug & Play)
• Enhanced Crosstalk Reduction (NEXT & Alien Crosstalk)
• Available in Shielded & Unshielded Versions
• Flexible Stranded Conductors
• Patch cords have stranded copper conductors for flexibility – great for frequent changes that occur at the wall outlet or patch panel.
•  Complies with TIA/EIA 568B standard.
• Virtually eliminates alien crosstalk and interference.
• Performance rated beyond 600MHz.
• Backwards compatible with CAT5e, CAT6, and CAT6a equipment
• Low profile is ideal for high-density switch applications.

Applications:

• High-Speed Data Transmission
• Data Centers and High-Density Switching
• Interference-Sensitive Environments (SFTP Specific)
• Safety-Critical Infrastructure (LSZH Jacket)

FTT’s Cat6A Networking Patch Cord Portfolio Including:

• UTP Cat6A Networking Patch Cord.
• SFTP Cat6A Networking Patch Cord

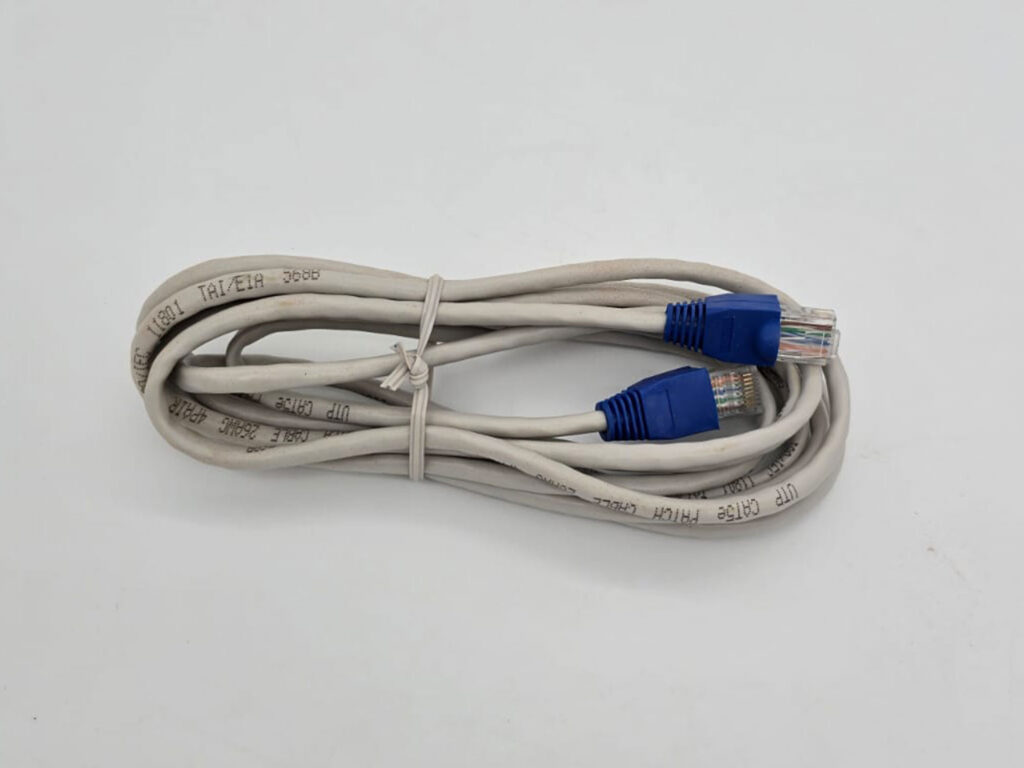

Cat5e Networking Patch Cords:

FTT’s Cat5e Patch Cords are high quality factory terminated Ethernet cables designed for high speed data transfer in Local Area Networks (LAN). Operating at frequencies up to 100 MHz, It is manufactured using Category 5e twisted pair cable and terminated with RJ45 connectors on both ends, ensuring reliable and high-speed data transmission up to 1Gbps. these cables are the perfect bridge between your network switch, patch panel, and end-user devices (PCs, VoIP phones, and IP cameras).

Key Features:

• Supports Data Rates up to 1Gbps (1000Base-T).
• Bandwidth up to 100 MHz.
• 4 Twisted Pairs (8 stranded copper conductors).
• 24 AWG stranded copper wire (for flexibility).
• Pre-terminated RJ45 Connectors.
• Plug-and-Play Installation.
• PVC or LSZH outer jacket.
• Flexible and Durable Design.
• Available in Various Lengths and Colors.
• Supports Power over Ethernet.

Applications:

• Patch Panel to Switch Connections.
• Computer to Network Outlet.
• Router to Switch Links.
• Office & Home Networking.
• Data Centers (short links).

FFT’s Networking Patch Cords Portfolio Including:

• UTP Cat5e Patch Cord.
• FTP Cat5e Patch Cord.
• SFTP Cat5e Patch Cord.

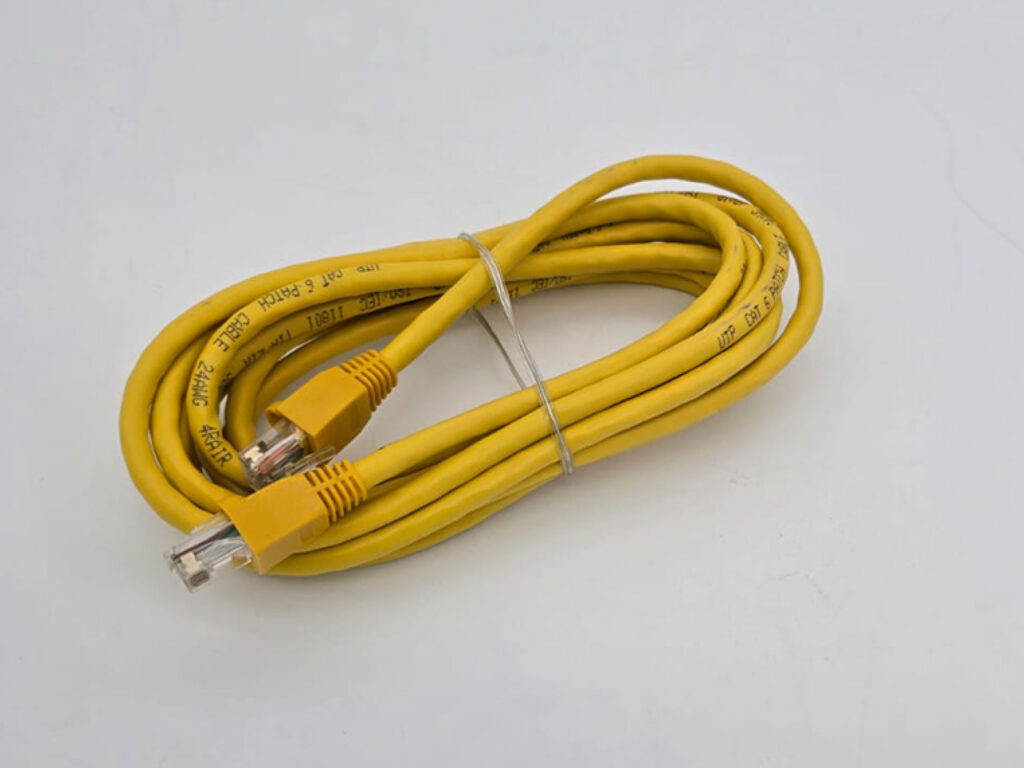

Cat6 Networking Patch Cords

The FTT’s Cat6 Networking Patch Cord is a high-performance, pre-terminated copper cable designed for reliable connections in Gigabit Ethernet and 10 Gigabit Ethernet (short-distance) networks.
It is constructed using Category 6 twisted pair cable with stranded copper conductors and terminated with RJ45 connectors on both ends, ensuring flexibility, durability, and consistent signal performance.
Cat6 patch cords provide improved bandwidth and reduced crosstalk compared to Cat5e, making them suitable for modern network infrastructures.

Key Features:

• Supports Data Rates up to 1Gbps (1000Base-T)
• Supports 10Gbps up to 55 meters
• Bandwidth up to 250 MHz
• Pre-terminated RJ45 Connectors (Plug & Play)
• Improved Crosstalk Reduction (NEXT & FEXT)
• Flexible Stranded Copper Conductors
• Available in UTP, FTP, and SFTP Versions
• Supports Power over Ethernet (PoE / PoE+)
• Reliable and consistent performance
• Flexible and easy to manage
• Available in multiple configurations for different environments



Applications:

• Patch Panel to Switch Connections.
• Server to Switch Links.
• Computer to Network Outlet.
• Data Centers.

• Office & Enterprise Networks.

FTT’s Cat6 Networking Patch Cords Portfolio Including:

• UTP Cat6 LSZH Networking Patch Cord.
• SFTP Cat6 Networking Patch Cord.
