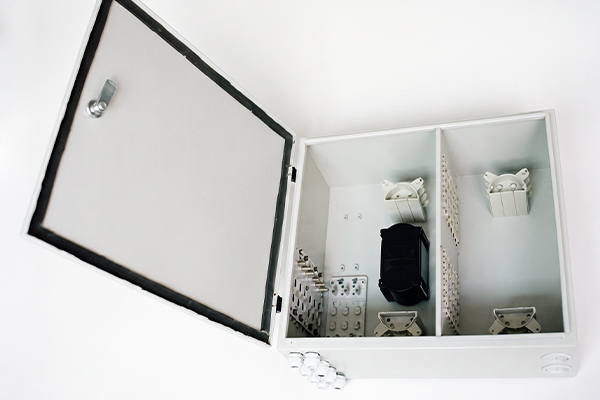

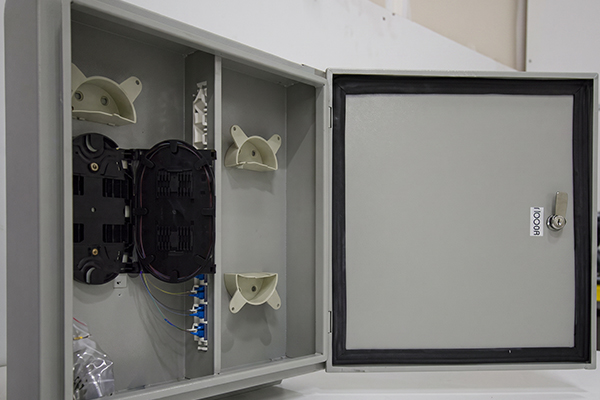

The Outdoor Optical Distribution Box (ODB) is a weatherproof fiber management enclosure designed for termination, splicing, splitting, storage, and distribution of optical fiber cables in outdoor environments.
It provides reliable protection against dust, moisture, UV radiation, and mechanical impact, ensuring stable optical performance in FTTH, access, and distribution network applications.
The enclosure supports feeder and distribution cable management while maintaining proper bend radius control and secure fiber routing.
Key Features
- Wall-mounted or pole-mounted design.
- Weatherproof and UV-resistant housing.
- Integrated splice and distribution sections.
- Compatible with PLC splitters.
- Organized fiber routing structure.
- Available in durable materials such as ABS-PC or steel for added resilience.
- Easy installation and field maintenance.
Applications:
- Fiber to the home (FTTH).
- LAN/ WAN.
- Telecommunications subscriber loop.
- CATV.
Optical performance
| Insert loss | ≤0.3dB |
| Return loss | ≥50dB (PC / UPC) , ≥60dB(APC) |
| Durability | ≥1000 Mating |
Operating Environments
| Operating temperature | -25°C to +40°C |
| Storage temperature | -25°C to +55°C |
| Relative humidity | ≤85% |
| Air pressure | 70Kpa ~ 106Kpa |
