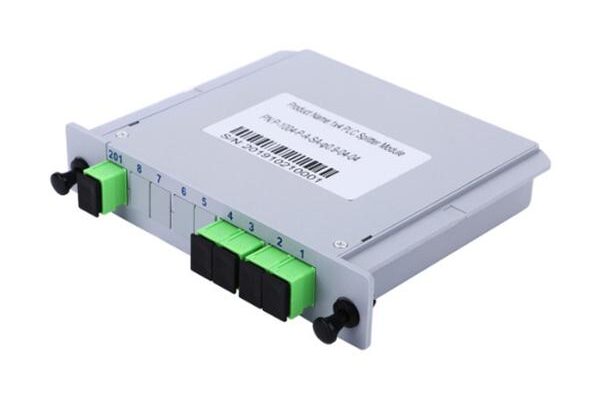

FTT’s Plugin PLC Splitters (also referred to as LGX or Cassette type) are designed for high-density fiber distribution networks. This type features a “Plug-and-Play” design, where the splitter is housed in a rugged plastic or metal cassette with adapters (usually SC or LC) pre-installed on the front panel. It is the ideal solution for fast deployments in central offices and outdoor distribution cabinets. These splitters are widely used in FTTH / FTTX and PON networks for efficient optical signal distribution.
Key Features:
- Plug-in Modular Design for fast installation and replacement.
- LGX Compatible for standard rack and cabinet integration.
- Uniform Optical Signal Distribution.
- Low Insertion Loss & High Stability.
- Wide Operating Wavelength Range (1260nm – 1650nm).
- Low Polarization Dependent Loss (PDL).
- Pre-terminated Connectors for plug-and-play operation.
- High Reliability and Long Service Life.
- Compliant with Telcordia GR-1209 & GR-1221 Standards.
Technical Specifications:
| Configuration Ratios | 1×4, 1×8, 1×16, 1×32 |
| Operating Wavelength | 1260nm – 1650nm |
| Insertion Loss | ~7.2dB (1×4) |
| ~10.5dB (1×8) | |
| ~13.5dB (1×16) | |
| ~17dB (1×32) | |
| Return Loss | ≥ 55dB |
| Operating Temperature | -40°C to +85°C |
Applications:
- FTTH / FTTX Networks.
- Passive Optical Networks (PON).
- Central Offices (CO).
- Optical Distribution Frames (ODF).
- Data Centers & Telecom Cabinets.
