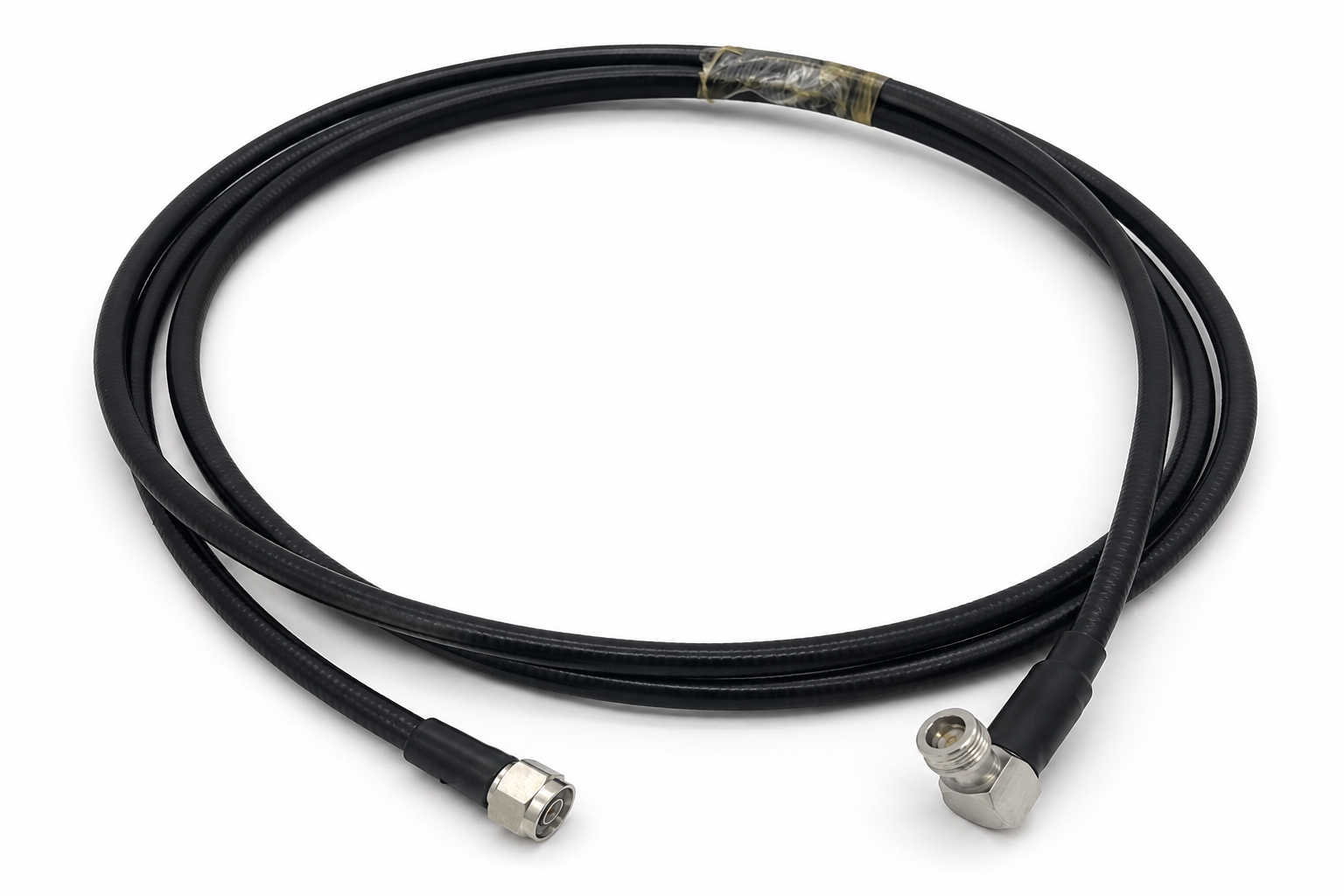

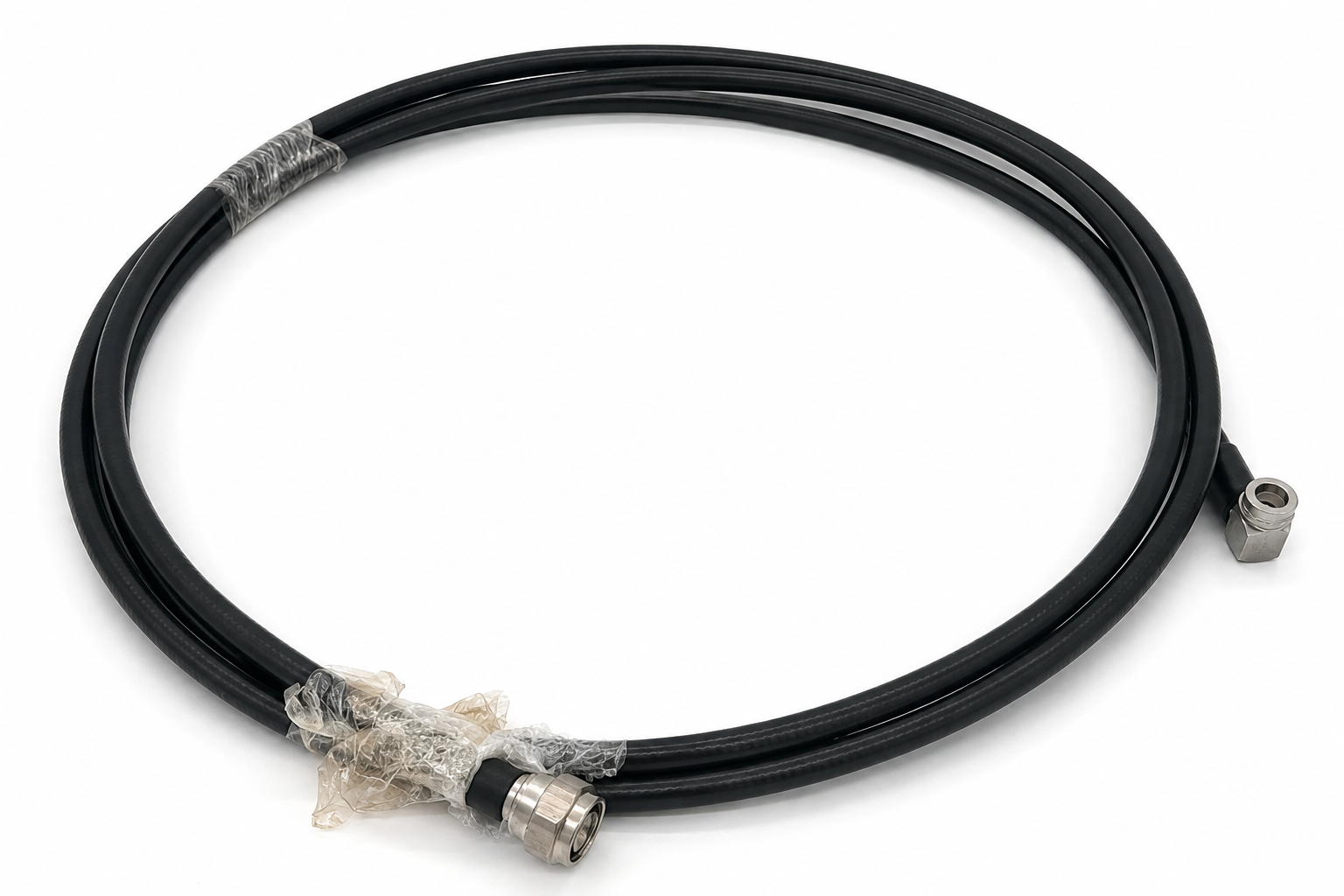

FTT RF Jumper Cables provide reliable, low-PIM RF connectivity for telecom and wireless infrastructure. Designed with high-performance 1/2” or 3/8” Superflex coaxial cable, they are available with multiple connector combinations to support flexible installation requirements.
Key Features
- 50Ω characteristic impedance
- Frequency range: DC–3.0 GHz
- Low VSWR ≤1.12
- Low PIM performance: ≤-160 dBc
- IP68 weatherproof protection
- Operating temperature: -40°C to +85°C
- Durable connectors with ≥500 mating cycles
- Standard lengths: 1m, 3m and 5m
- RoHS compliant
-
Straight and Right-Angle connector options
Available Configurations
- 7/16 DIN Male – 4.3/10 Male
- 4.3/10 Male – 7/16 DIN Male Right Angle
- 4.3/10 Male – N Male
- 7/16 DIN Male – 7/16 DIN Male
- 7/16 DIN Male – 7/16 DIN Male Right Angle
- 7/16 DIN Male Right Angle – N Male
- Mini DIN Male (4.1/9.5) – N Male
- N Male – N Male
- Mini DIN Male (4.1/9.5) – Mini DIN Male (4.1/9.5)
Applications
Ideal for
- BTS sites
- Antenna systems
- RF equipment
- Distributed antenna systems (DAS)
- Telecom infrastructure
- Other wireless communication applications.
