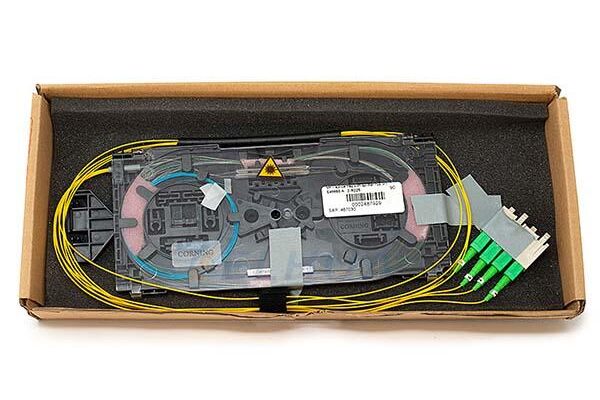

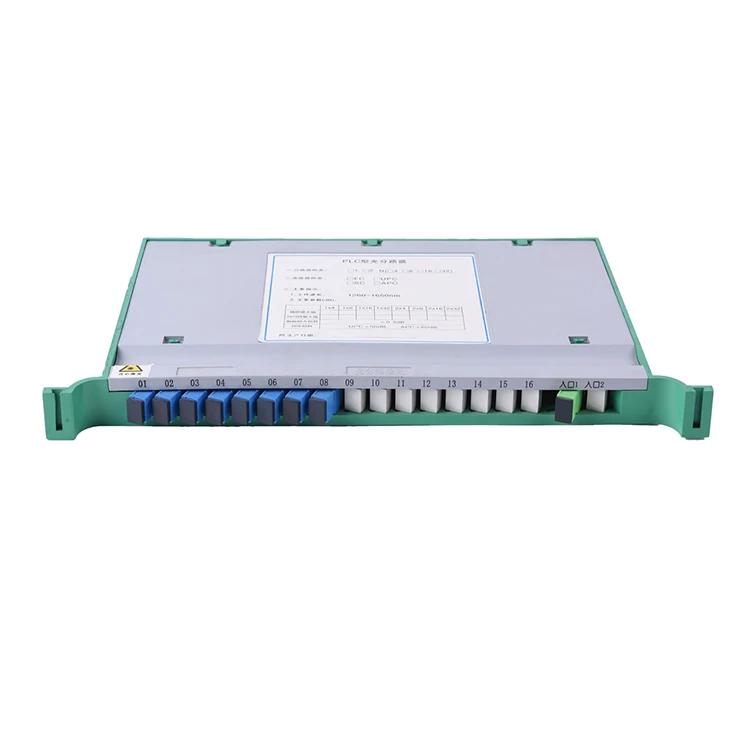

FTT’s Tray Type PLC Splitters are integrated solutions designed for organized fiber management within Optical Distribution Frames (ODF), fiber terminal boxes, and splice closures. The splitter is securely mounted on a standardized optical tray, protecting the splitting component while providing dedicated routing paths for input and output fibers. This design simplifies fiber splicing and minimizes the risk of macro-bending.
Key Features:
- Integrated Tray Design for easy installation in splice closures and ODFs.
- Organized Fiber Management with proper routing and protection.
- Uniform Optical Signal Distribution across all outputs.
- Low Insertion Loss & High Stability.
- Wide Operating Wavelength Range (1260nm – 1650nm).
- Low Polarization Dependent Loss (PDL).
- High Reliability and Environmental Stability.
- Compliant with Telcordia GR-1209 & GR-1221 Standards.
Technical Specifications:
| Configuration Ratios | 1×4, 1×8, 1×16, 1×32 |
| Operating Wavelength | 1260nm – 1650nm |
| Insertion Loss | ~7.2dB (1×4) |
| ~10.5dB (1×8) | |
| ~13.5dB (1×16) | |
| ~17dB (1×32) | |
| Return Loss | ≥ 55dB |
| Operating Temperature | -40°C to +85°C |
Applications:
- Fiber Optic Splice Closures.
- Optical Distribution Frames (ODF).
- FTTH / FTTX Networks.
- Passive Optical Networks (PON).
- Fiber Distribution Cabinets.
