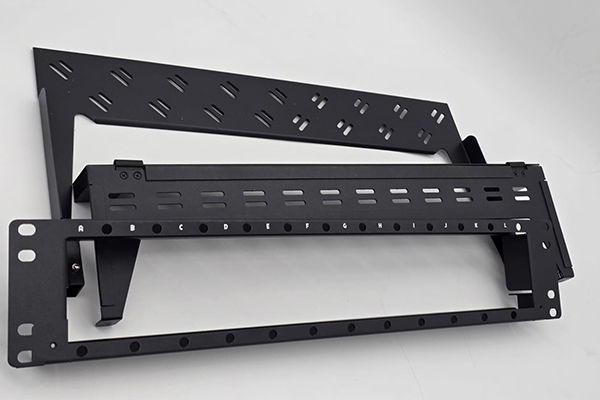

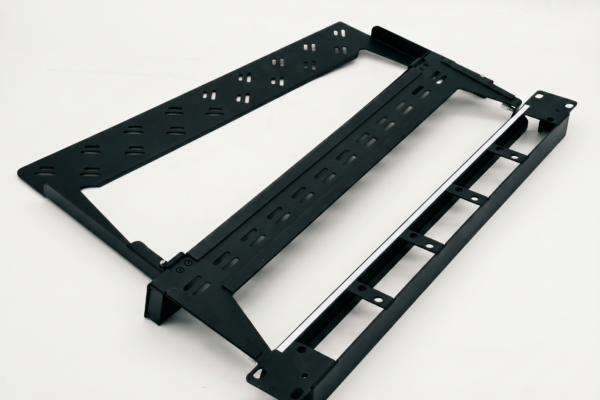

The Ultra High-Density MPO Patch Panel is a modular, rack-mounted fiber management solution designed to support high-density backbone and data center applications.
It enables efficient termination and distribution of high-fiber-count trunk cables using MPO connectivity, while maximizing rack space utilization and ensuring structured cable management.
The system is engineered for fast deployment, scalability, and simplified migration from 10G to 40G / 100G / 400G Ethernet environments.
Key Features
- Ultra high fiber density in 1U / 2U configuration.
- Managing large volumes of MPO/MTP fiber connections in minimal space.
- Supports front-access plug-and-play installation.
- Ideal for data centers requiring high bandwidth and minimal footprint.
- Supports pre-terminated MPO trunk cables
Applications
- Data Centers.
- Cloud Infrastructure.
- High-speed Backbone Networks.
- Enterprise Core Networks.
- 40G / 100G / 400G Ethernet Systems.
Optical performance
| Insert loss | ≤0.3dB |
| Return loss | ≥50dB (PC / UPC) , ≥60dB(APC) |
| Durability | ≥1000 Mating |
Operating Environments
| Operating temperature | -25°C to +40°C |
| Storage temperature | -25°C to +55°C |
| Relative humidity | ≤85% |
| Air pressure | 70Kpa ~ 106Kpa |
