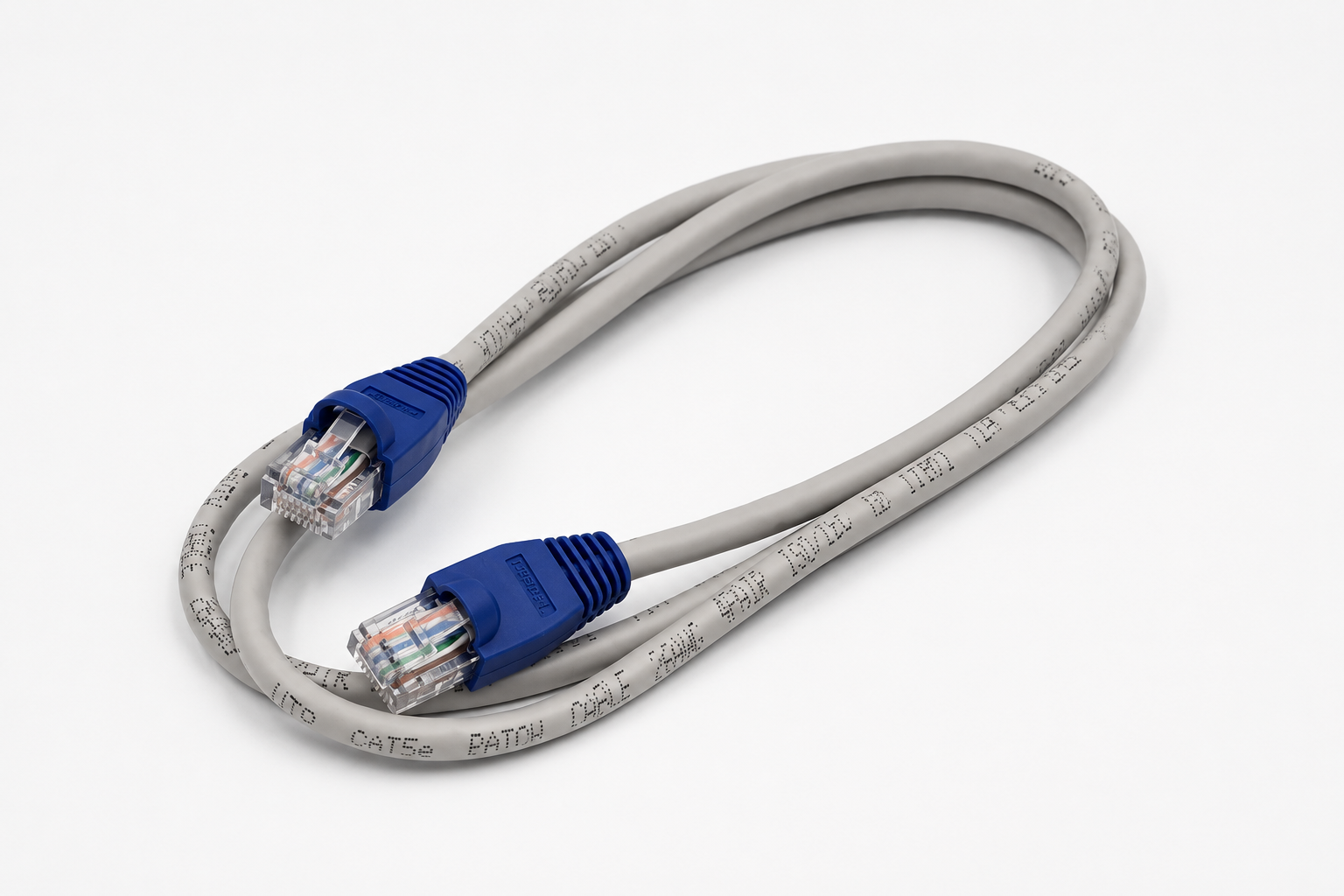

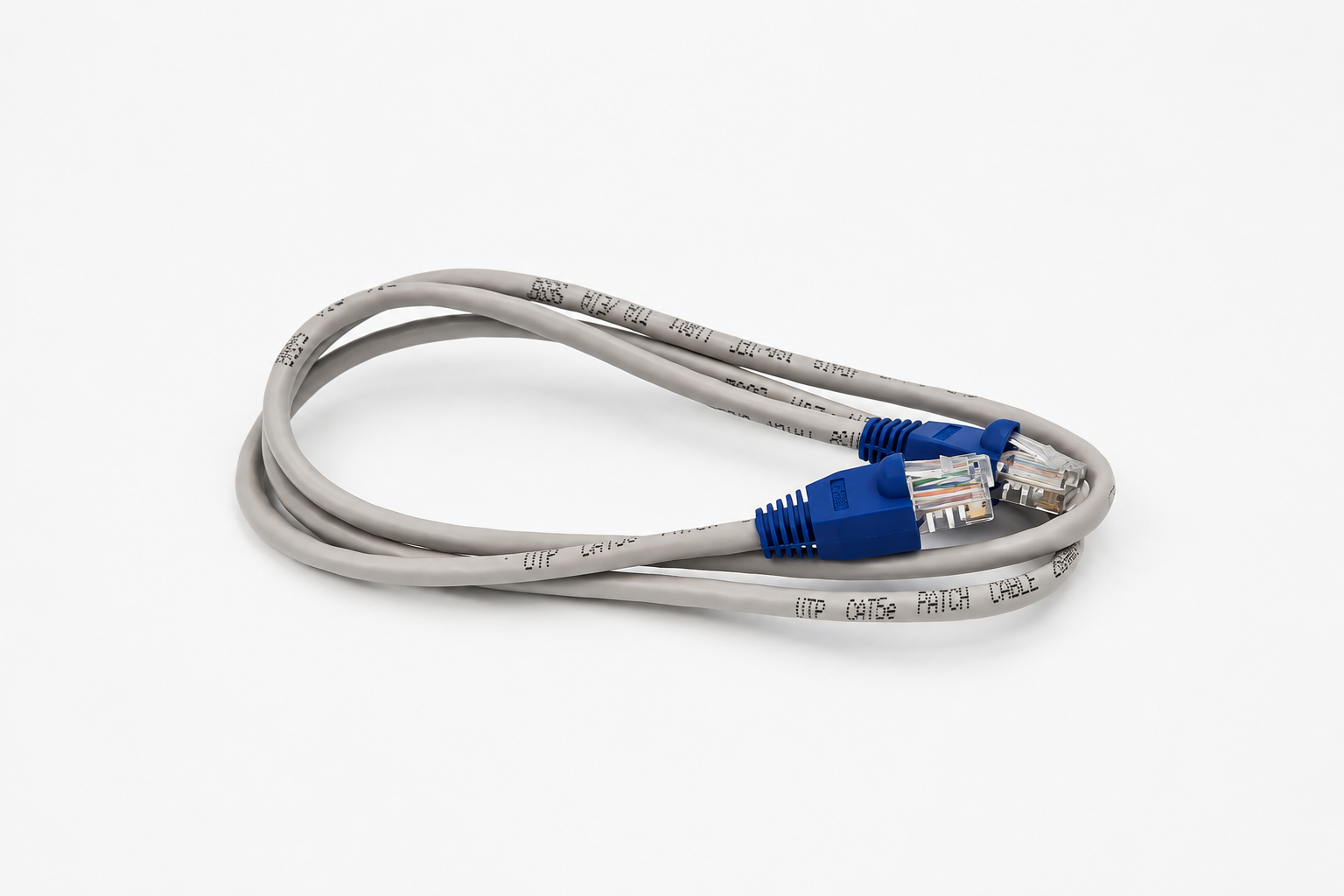

The FTT’s UTP Cat5e Patch Cord (Unshielded Twisted Pair Category 5e) is a flexible, pre-terminated copper cable designed for reliable short-distance connections in Ethernet networks.
It is manufactured using stranded copper conductors and terminated with RJ45 connectors on both ends, ensuring stable performance for Gigabit Ethernet (1Gbps) applications.
This patch cord is ideal for use in LAN systems, patch panels, and network devices where ease of installation and cost efficiency are required.
Key Features:
- Supports Data Rates up to 1Gbps (1000Base-T).
- Bandwidth up to 100 MHz.
- Unshielded Twisted Pair Design (UTP).
- Pre-terminated RJ45 Connectors.
- Plug-and-Play Installation.
- Flexible and Durable Construction.
- Available in Various Lengths and Colors.
- Supports Power over Ethernet (PoE).
Applications:
- Patch Panel to Switch Connections
- Computer to Wall Outlet
- Router to Switch Links
- Office & Home Networking
- Structured Cabling Systems
Technical Characteristics:
| Cable Type | UTP (Unshielded) |
| Conductor Type | Stranded Copper |
| Conductor Size | 24 AWG (Typical) |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Impedance | 100 ± 15 Ohms |
| Bandwidth | 100 MHz |
| Data Rate | Up to 1Gbps |
| Connector Type | RJ45 (Gold-Plated Contacts) |
| Cable Length | 0.5m / 1m / 2m / 3m / 5m / 10m (Custom Available) |
| Jacket Type | PVC / LSZH |
| Operating Temperature | -20°C to +60°C |
