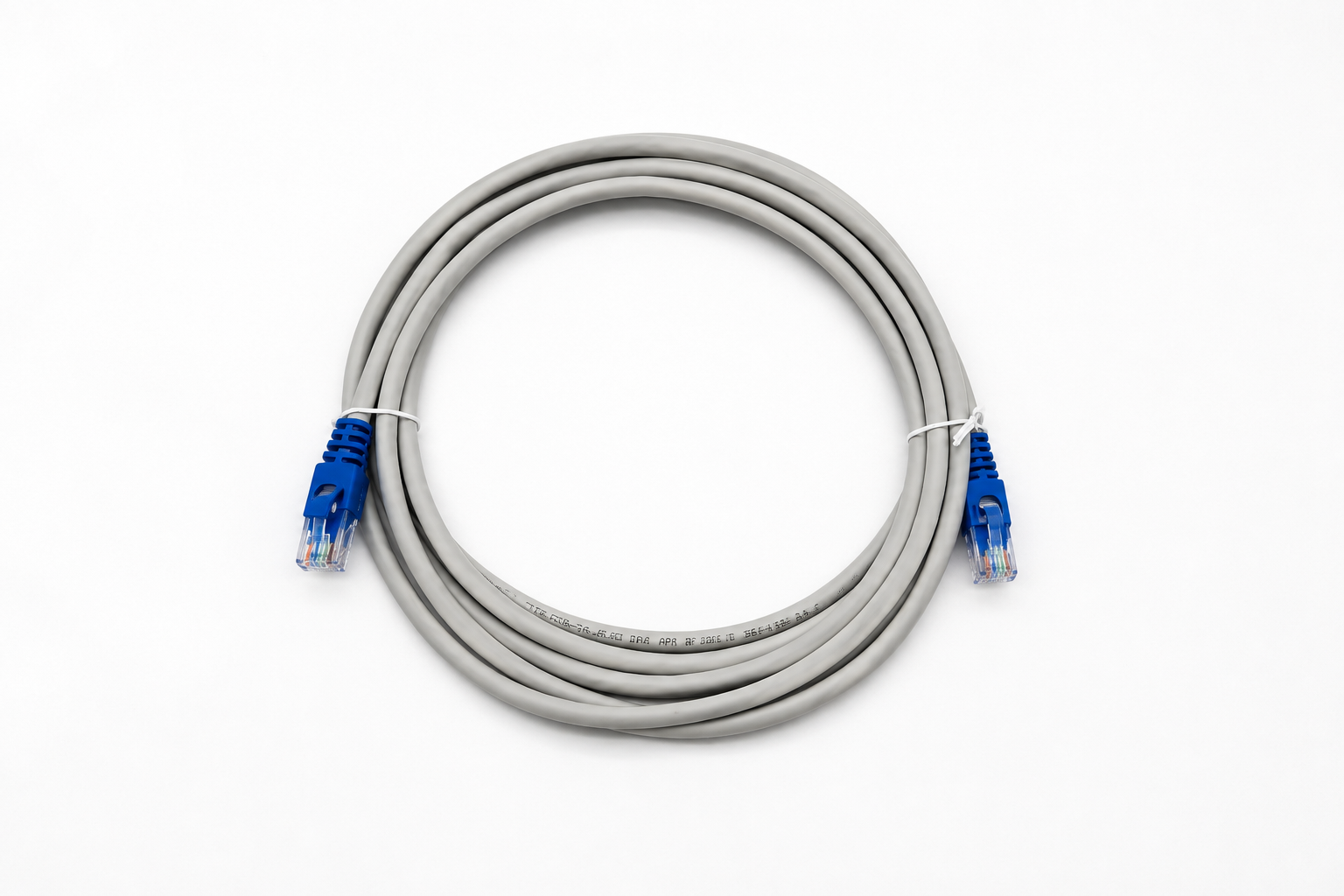

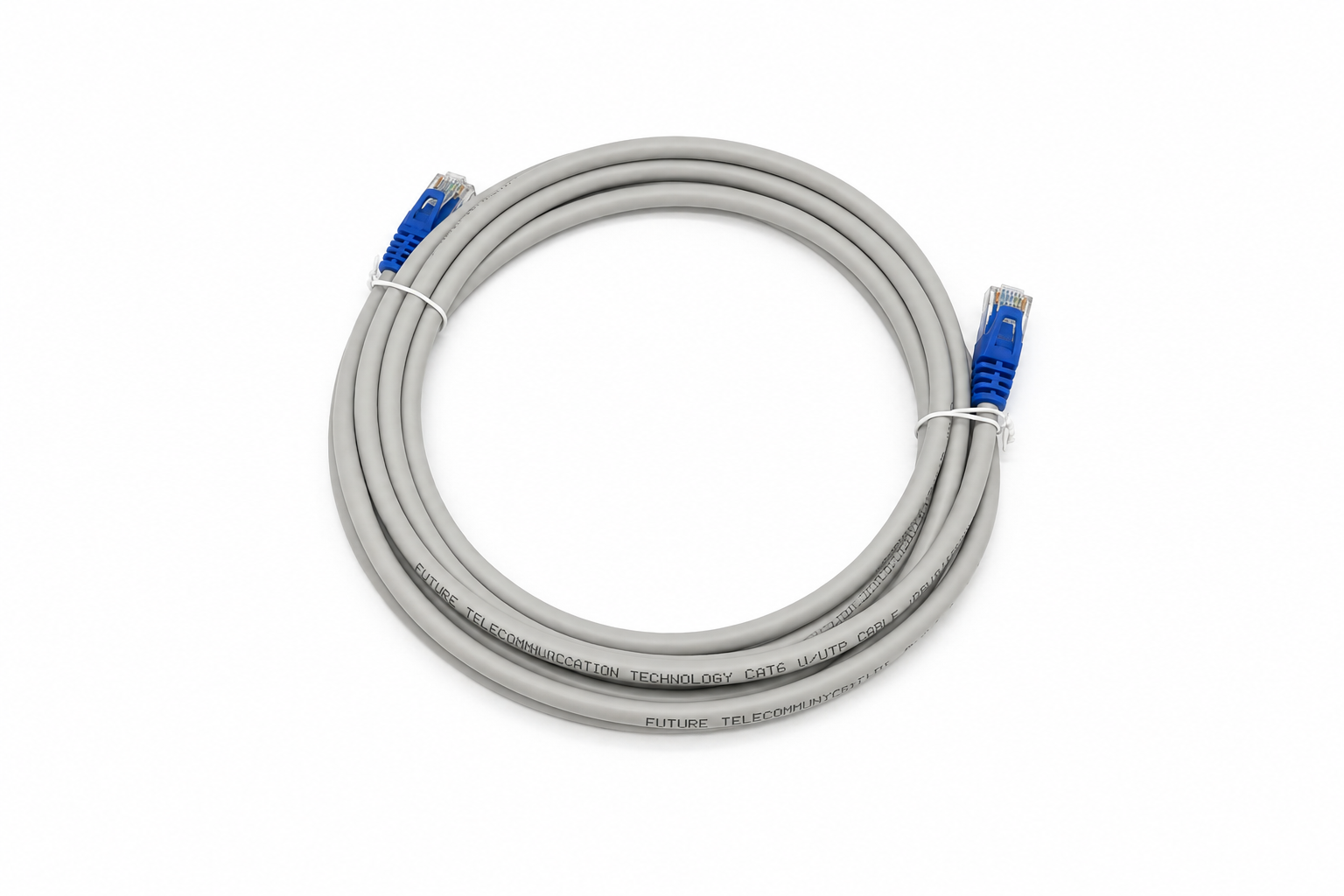

The FTT’s UTP Cat6 LSZH (Unshielded Twisted Pair Category 6, Low Smoke Zero Halogen) Networking Patch Cord is a high-performance, pre-terminated copper cable designed for reliable connections in Gigabit Ethernet and 10 Gigabit Ethernet (short-distance) networks.
It features unshielded twisted pairs with stranded copper conductors for flexibility, combined with an LSZH jacket that enhances safety in indoor environments by reducing toxic emissions and smoke in case of fire.
This makes it ideal for office buildings, data centers, and public areas where safety is a priority.).
Key Features:
- Supports Data Rates up to 1Gbps (1000Base-T)
- Supports 10Gbps up to 55 meters
- Bandwidth up to 250 MHz
- Unshielded Twisted Pair (UTP) Design
- LSZH Jacket for Enhanced Fire Safety
- Pre-terminated RJ45 Connectors (Plug & Play)
- Flexible Stranded Copper Conductors
- Supports Power over Ethernet (PoE / PoE+)
Applications:
- Office Buildings
- Data Centers
- Hospitals & Public Facilities
- Patch Panel to Switch Connections
- Structured Cabling Systems
Technical Characteristics:
| Cable Type | UTP (Unshielded) |
| Conductor Type | Stranded Copper |
| Conductor Size | 23–24 AWG |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Impedance | 100 ± 15 Ohms |
| Bandwidth | 250 MHz |
| Data Rate | 1Gbps up to 100m,10Gbps up to 55m |
| Connector Type | RJ45 (Unshielded, Gold-Plated Contacts) |
| Cable Length | 0.3m – 30m (Custom Available) |
| Jacket Type | LSZH (Low Smoke Zero Halogen) |
| Operating Temperature | -20°C to +60°C |
